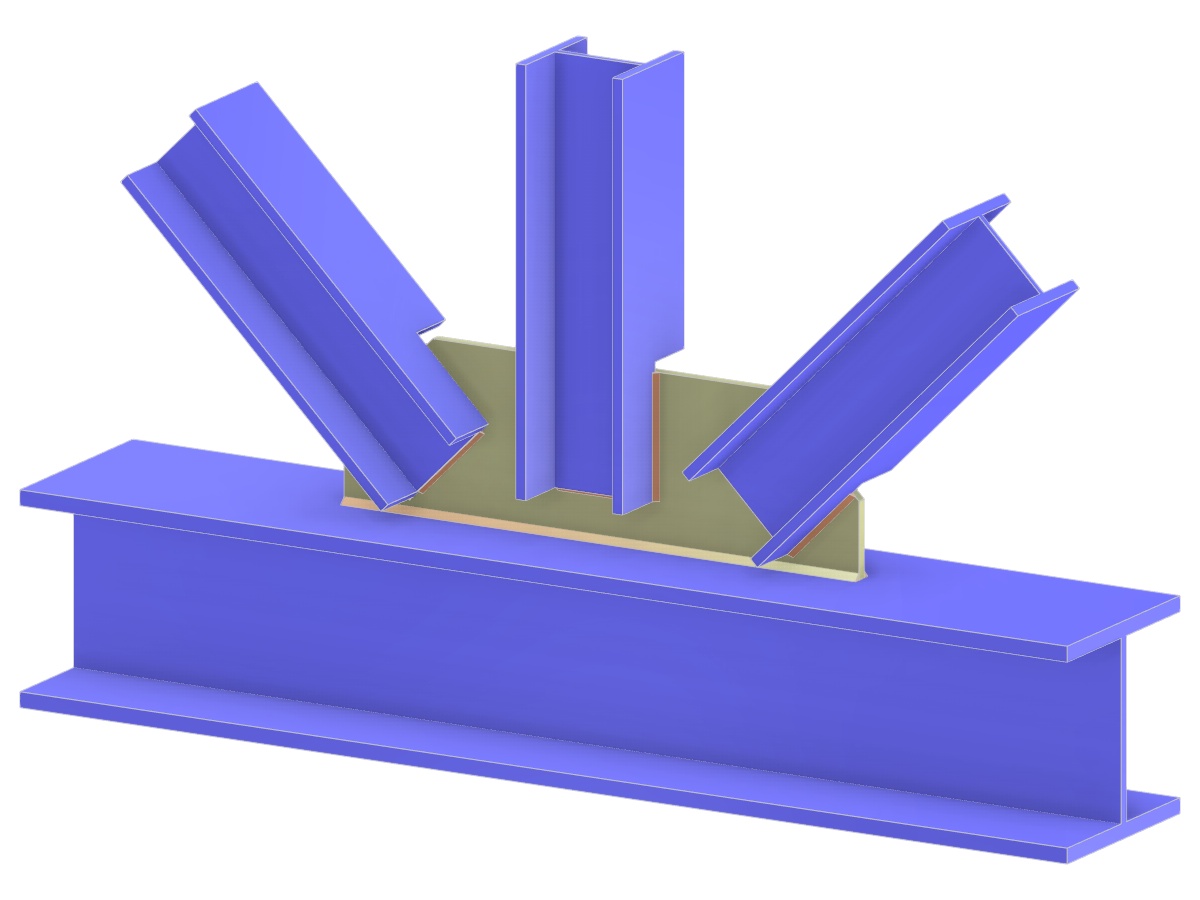

Model 005320 | Truss KT-Joint | Diagonals and Vertical to Chord Connection via Gusset Plate
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.133 tons |
| Dimensions (Metric) | 1.200 x 0.610 x 0.000 m |
| Dimensions (Imperial) | 3.94 x 2 x 0 feet |
