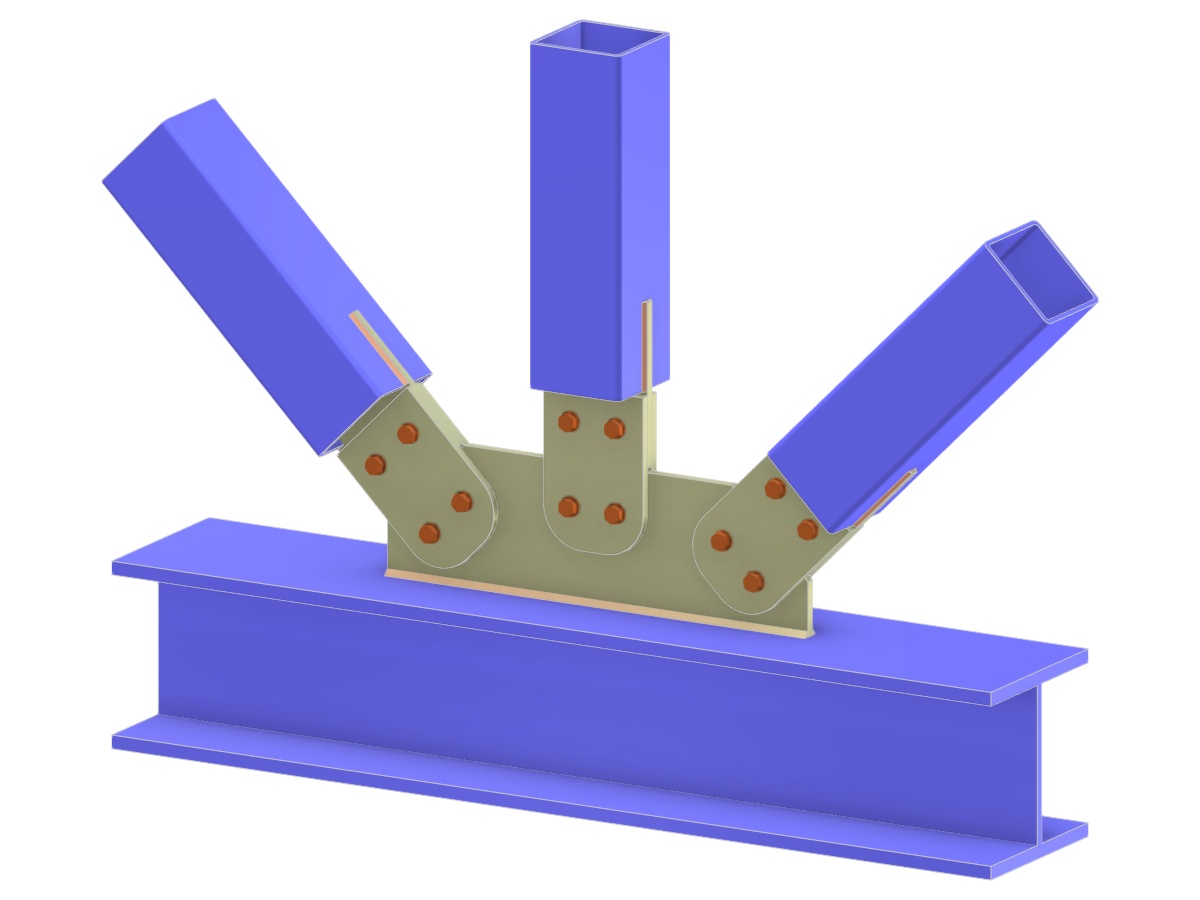

Model 005315 | Truss KT-Joint | Diagonals and Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
3D Model
More About 3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.124 tons |
| Dimensions (Metric) | 1,170 x 0,780 x 0,000 m |
| Dimensions (Imperial) | 3.84 x 2.56 x 0 feet |
