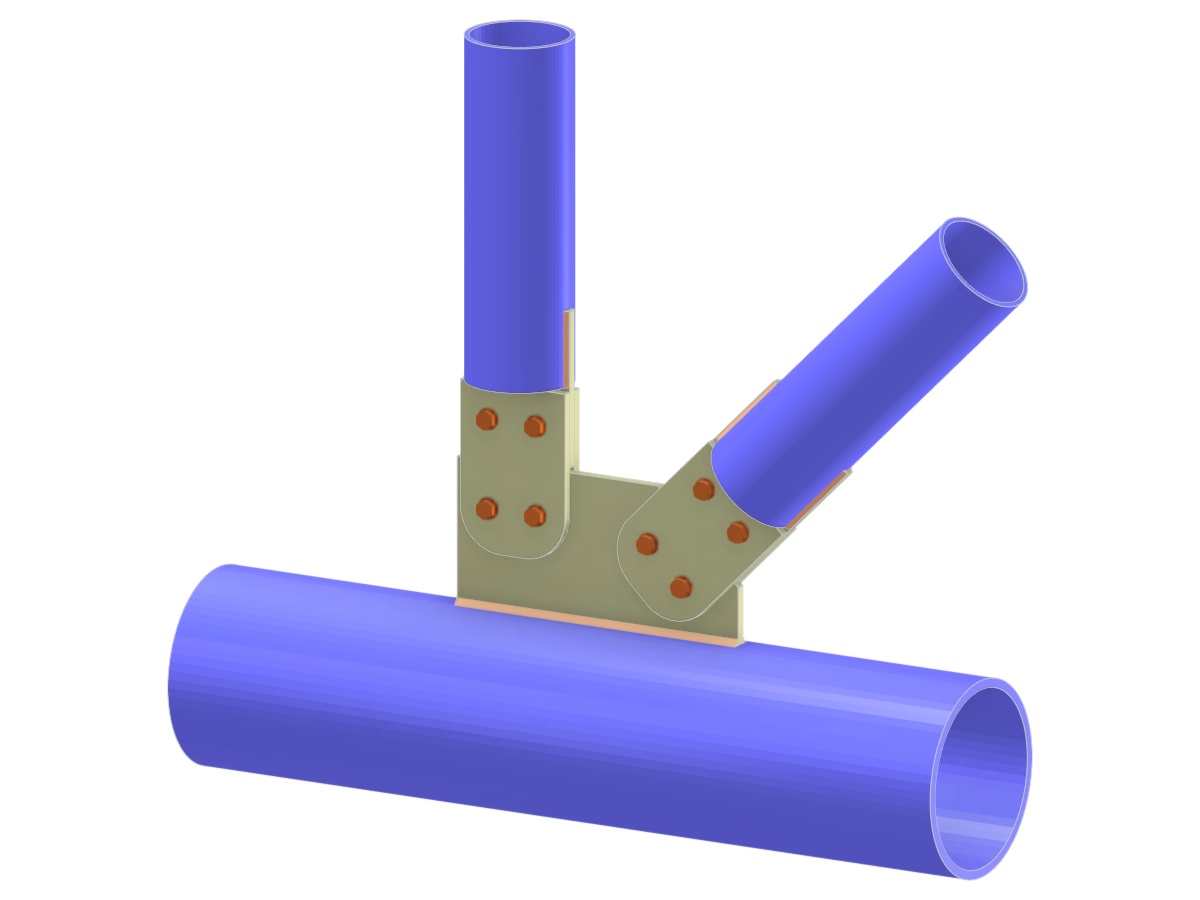

Model 005251 | Truss N-Joint | Diagonal and Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
3D Model
More About 3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.073 tons |
| Dimensions (Metric) | 0.965 x 0.790 x 0.000 m |
| Dimensions (Imperial) | 3.17 x 2.59 x 0 feet |
