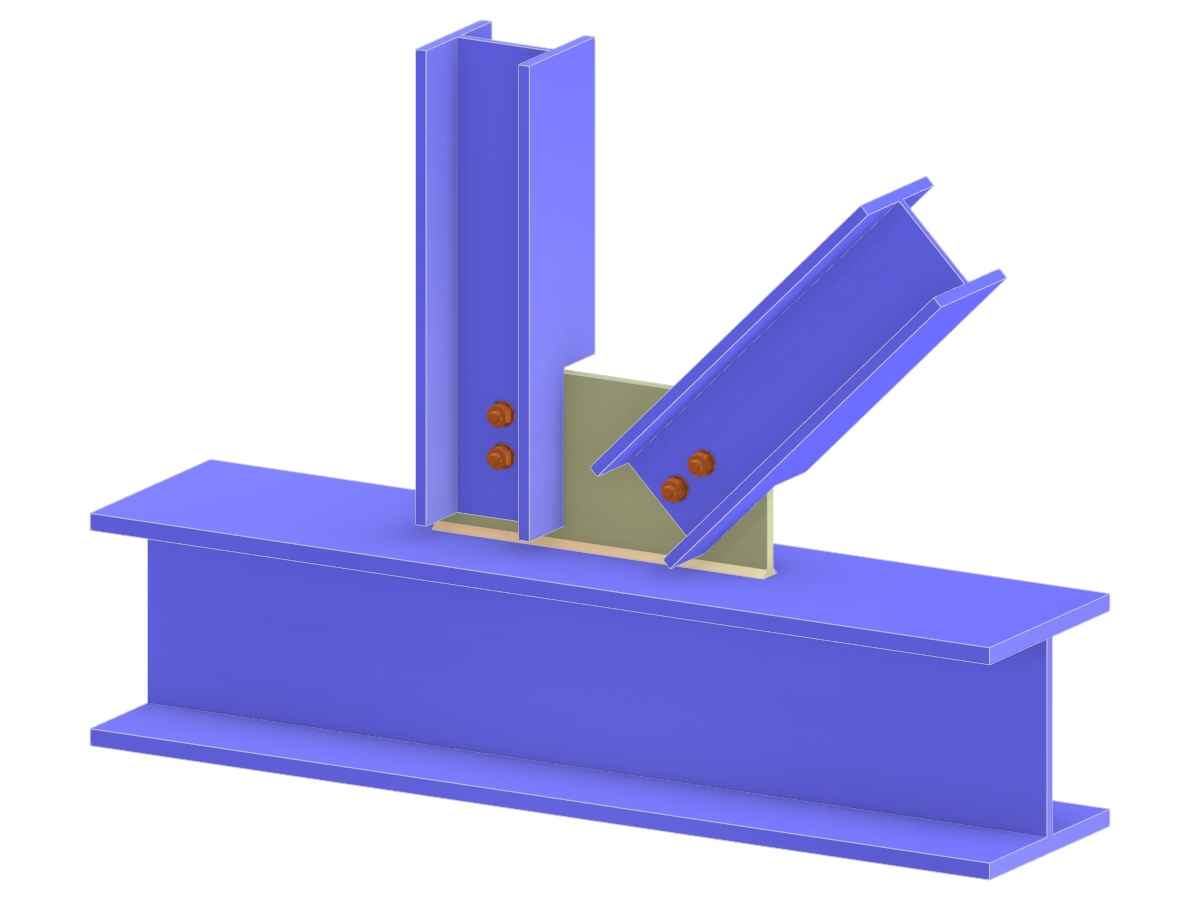

Model 005242 | Truss N-Joint | Diagonal and Vertical to Chord Connection via Gusset Plate
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.098 tons |
| Dimensions (Metric) | 0,960 x 0,590 x 0,000 m |
| Dimensions (Imperial) | 3.15 x 1.94 x 0 feet |
