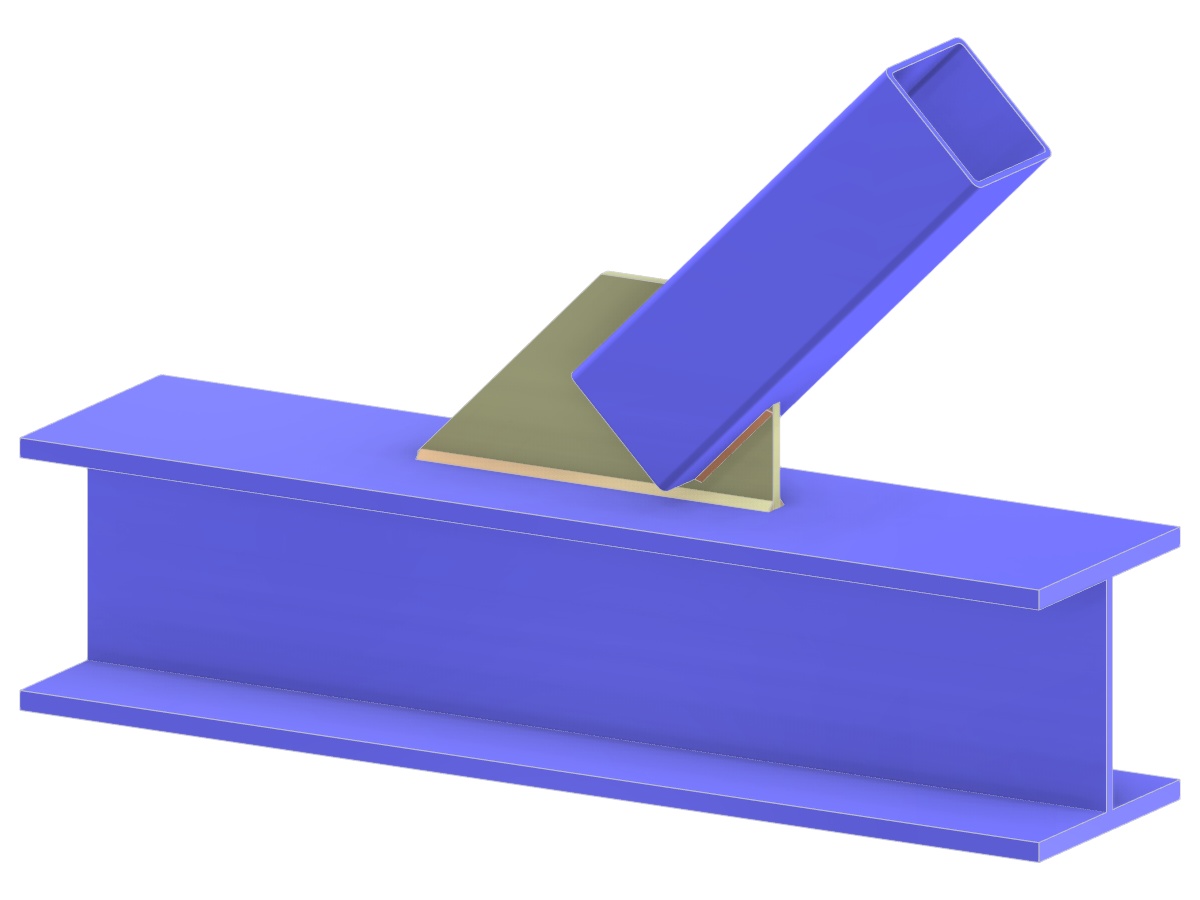

Model 005229 | Truss Y-Joint | Diagonal to Chord Connection via Gusset Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.076 tons |
| Dimensions (Metric) | 0,930 x 0,460 x 0,000 m |
| Dimensions (Imperial) | 3.05 x 1.51 x 0 feet |
