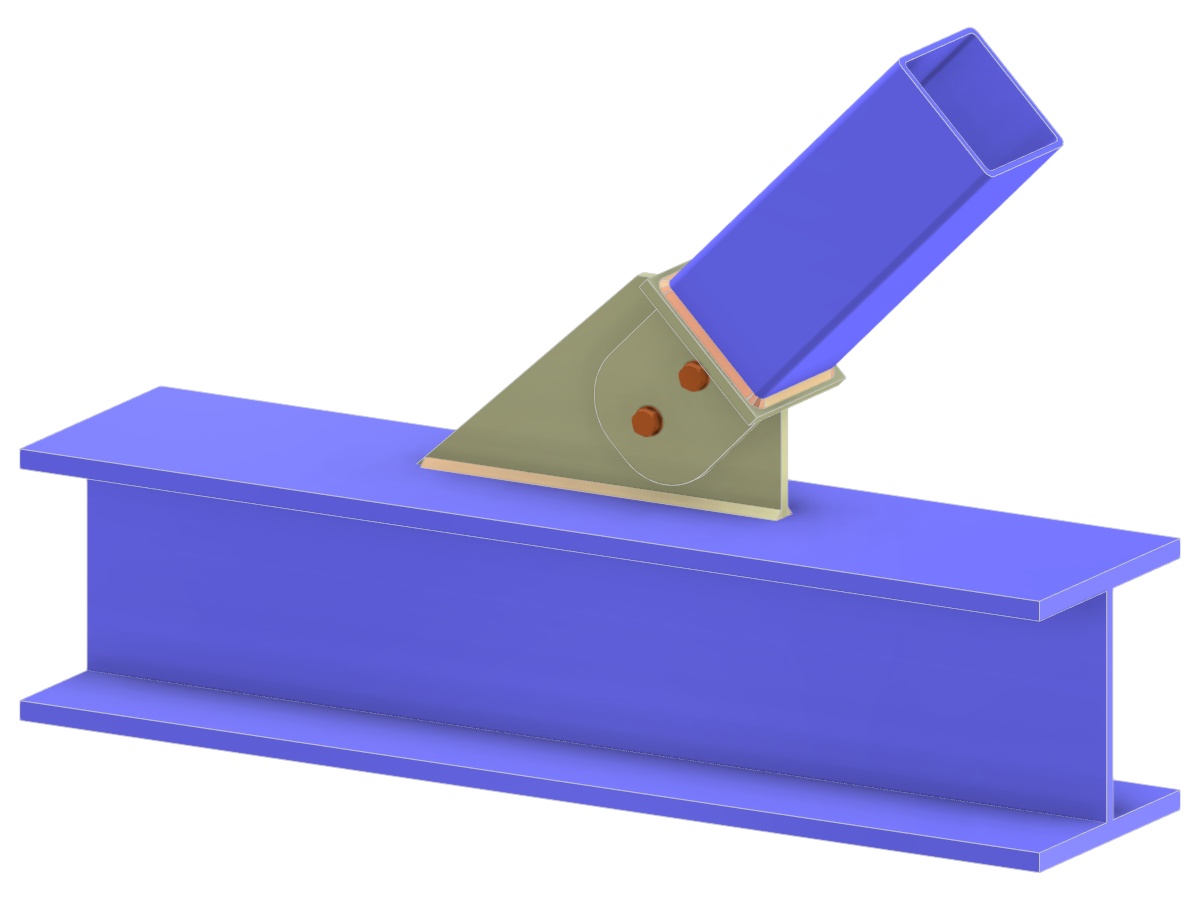

Model 005220 | Truss Y-Joint | Diagonal to Chord Connection via Gusset Plate, Tongue Plate, and Cap Plate
3D Model
More About 3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.077 tons |
| Dimensions (Metric) | 0,940 x 0,480 x 0,000 m |
| Dimensions (Imperial) | 3.08 x 1.57 x 0 feet |
