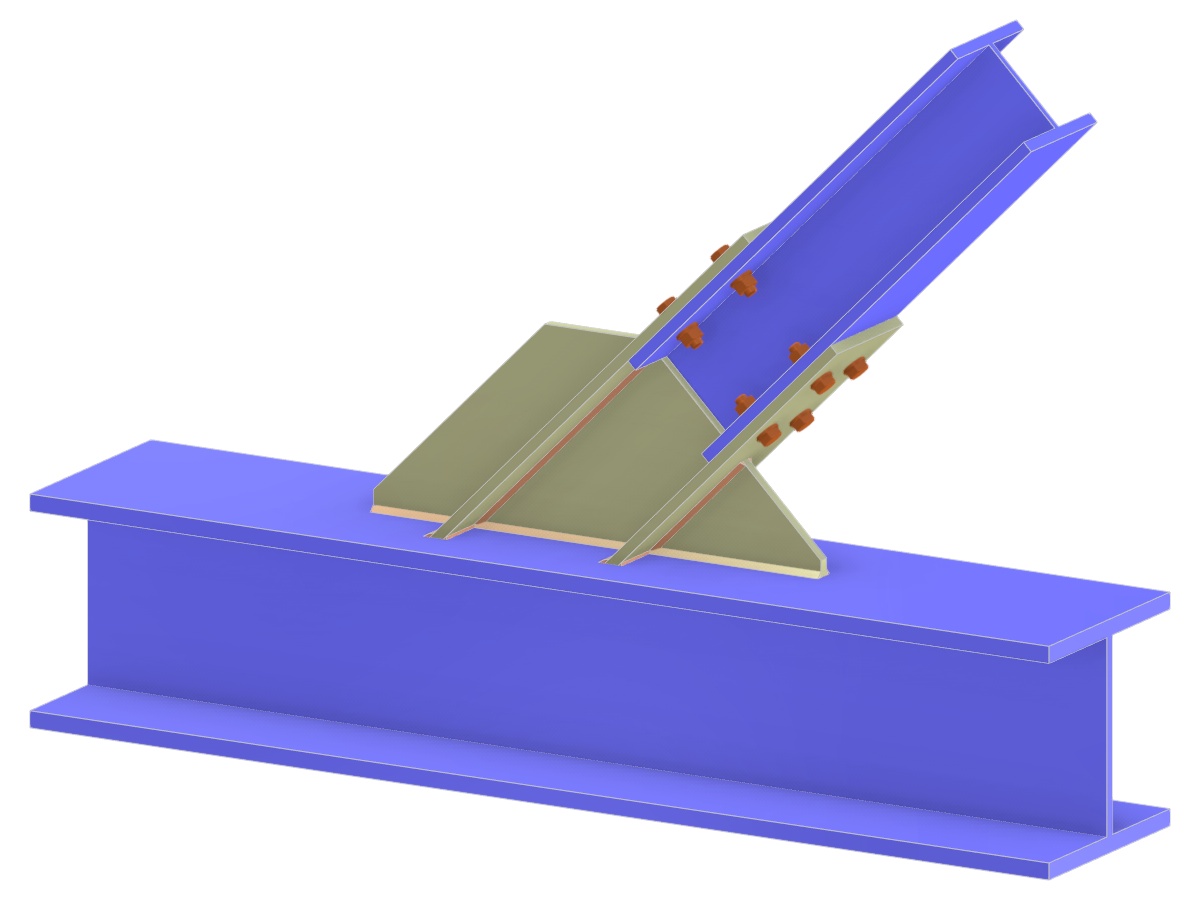

Model 005215 | Truss Y-Joint | Diagonal to Chord Connection via Gusset Plate and Fin Plates
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.098 tons |
| Dimensions (Metric) | 1,100 x 0,600 x 0,000 m |
| Dimensions (Imperial) | 3.61 x 1.97 x 0 feet |
