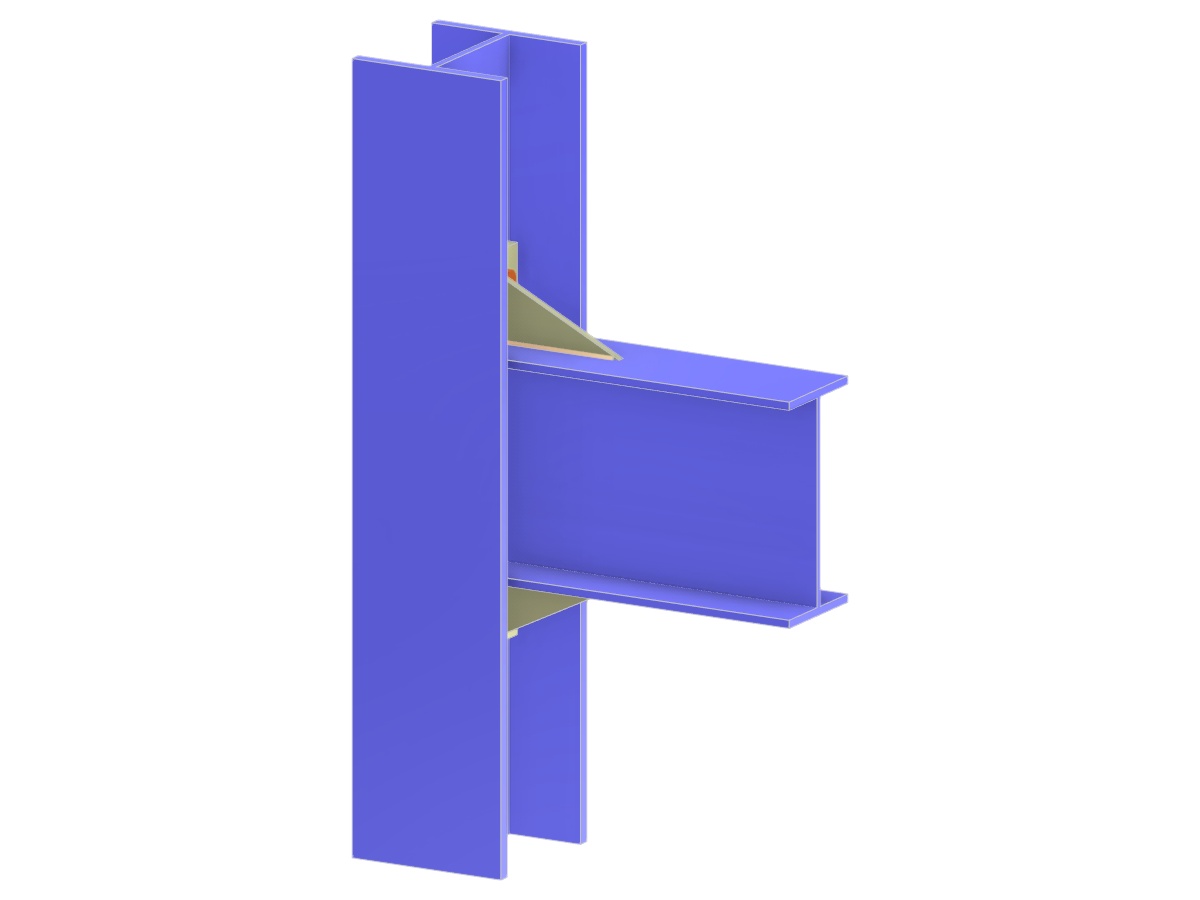

Model 005159 | Beam to Column Web Connection via Extended End Plate and Haunches
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.099 tons |
| Dimensions (Metric) | 0.630 x 1.060 x 0.000 m |
| Dimensions (Imperial) | 2.07 x 3.48 x 0 feet |
