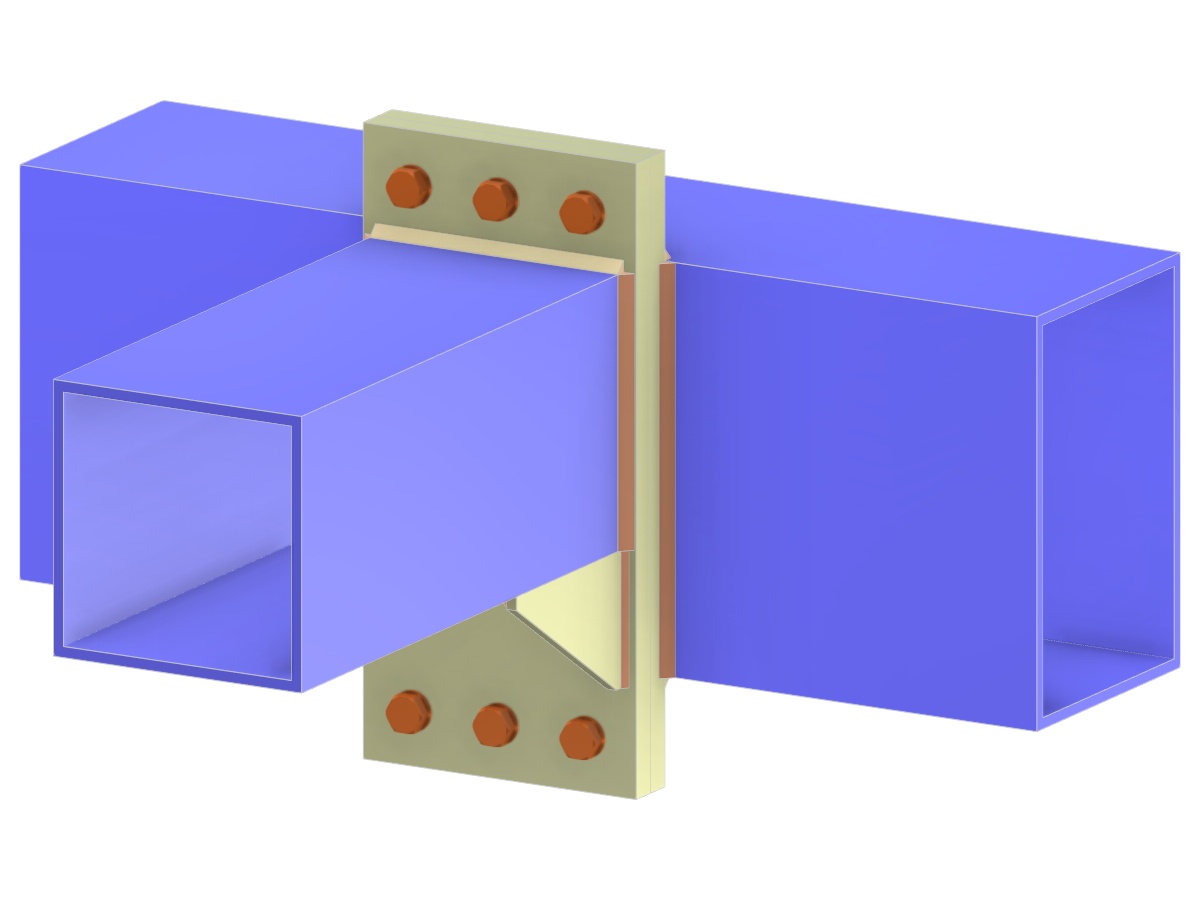

Model 005133 | Beam to Beam Connection Bolted via Extended End Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.082 tons |
| Dimensions (Metric) | 0,880 x 0,000 x 0,590 m |
| Dimensions (Imperial) | 2.89 x 0 x 1.94 feet |
