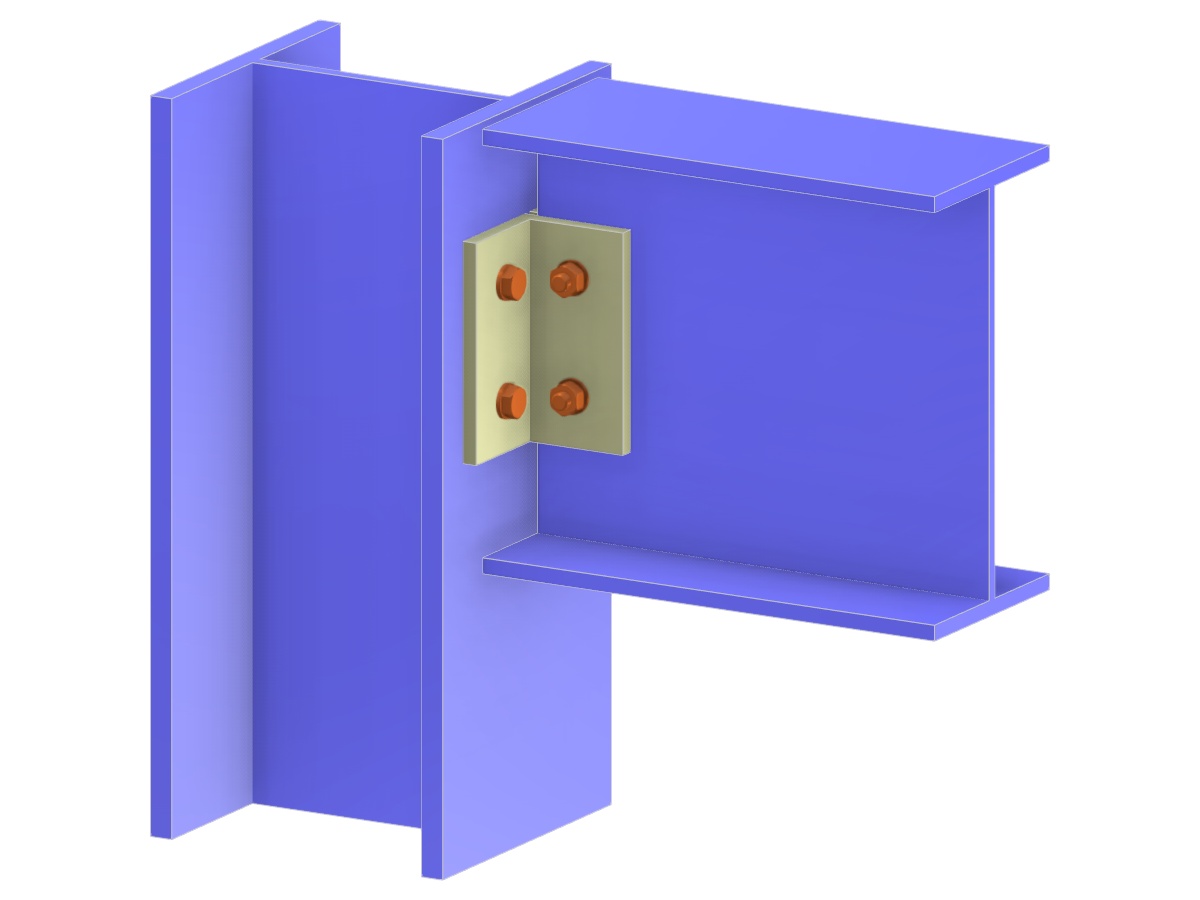

Model 005114 | Beam to Column Flange Connection via Cleats
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.043 tons |
| Dimensions (Metric) | 0.460 x 0.350 x 0.000 m |
| Dimensions (Imperial) | 1.51 x 1.15 x 0 feet |
