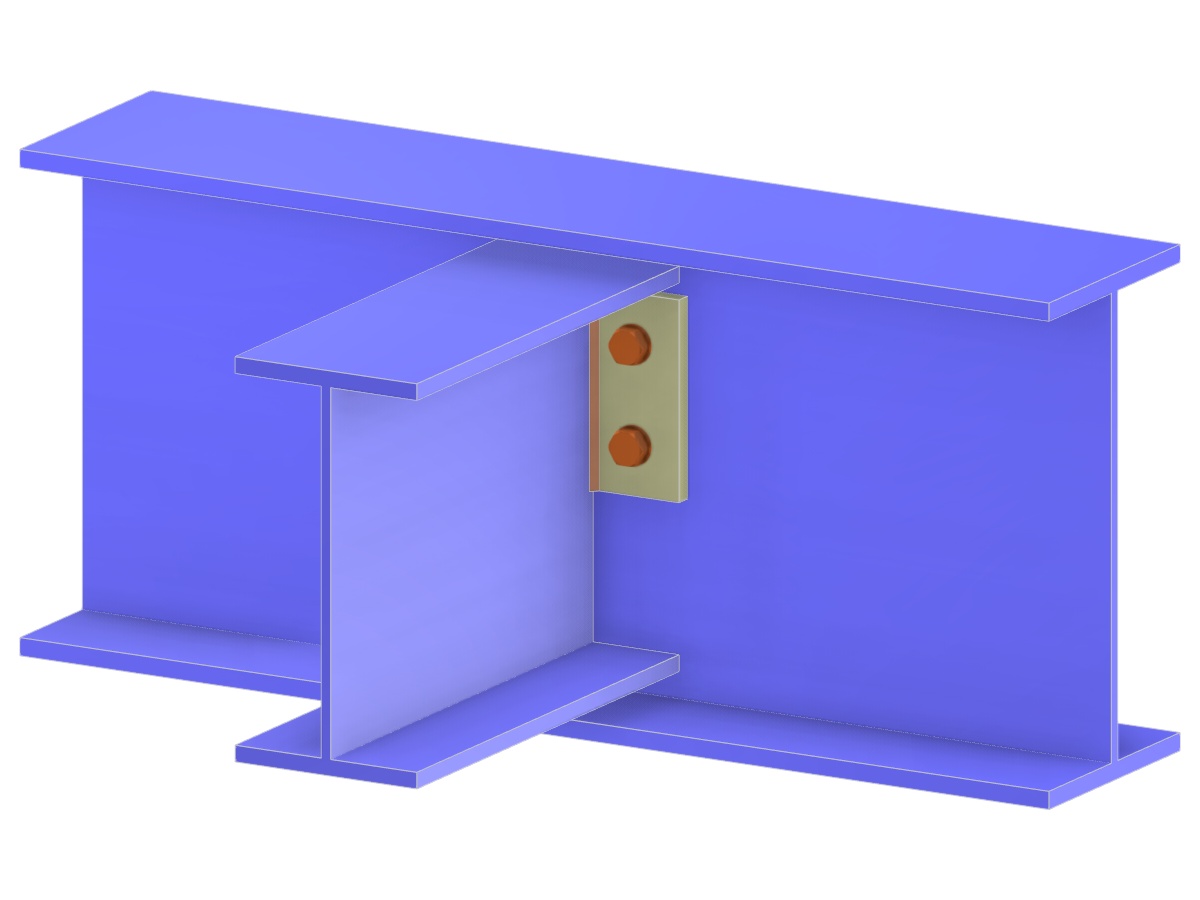

Model 005113 | Beam to Beam Connection with Partial Depth End Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.037 tons |
| Dimensions (Metric) | 0,680 x 0,000 x 0,320 m |
| Dimensions (Imperial) | 2.23 x 0 x 1.05 feet |
