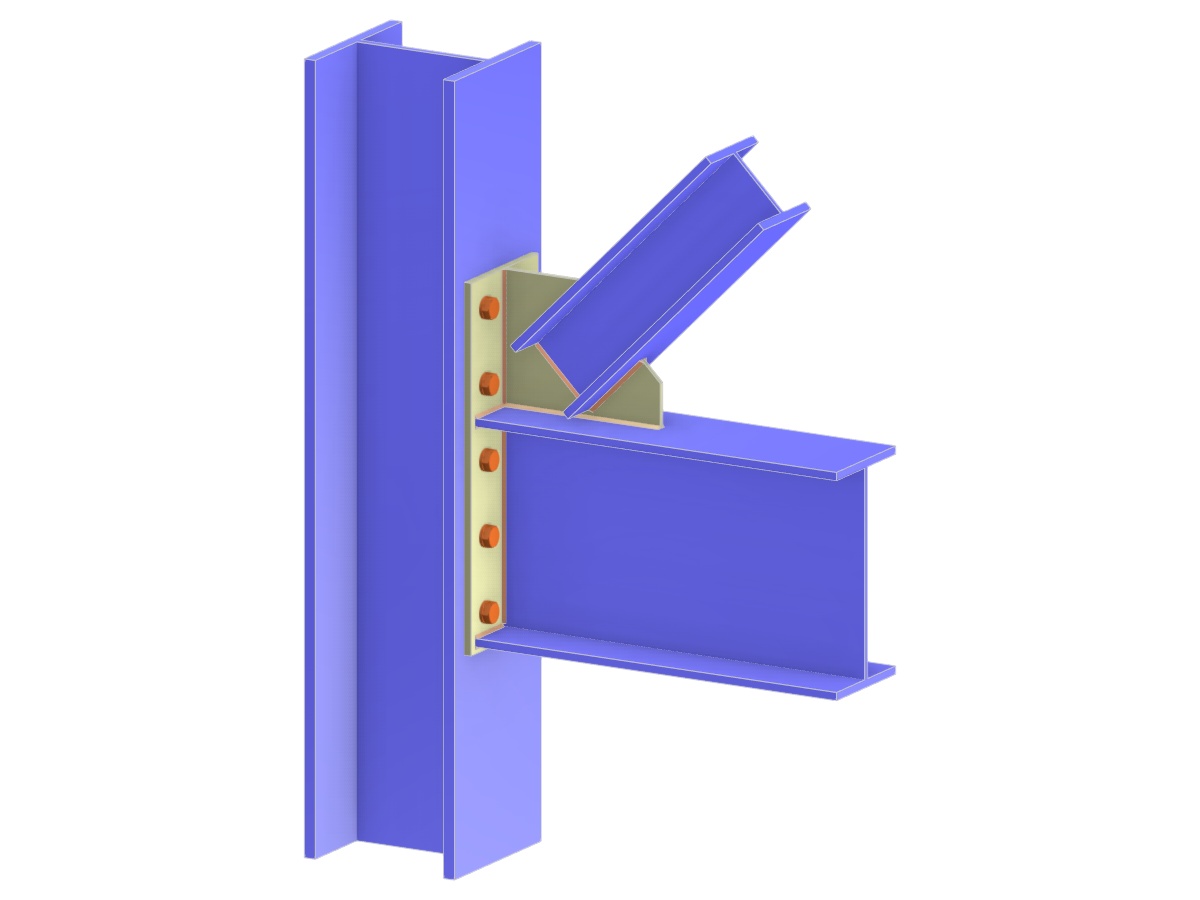

Model 005105 | Beam and Diagonal Brace to Column Flange Connection via Extended End Plate and Gusset Plate
3D Model
More About 3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.118 tons |
| Dimensions (Metric) | 0.660 x 1.050 x 0.000 m |
| Dimensions (Imperial) | 2.17 x 3.44 x 0 feet |
