Concrete Semi-Elliptical Right-Hand Staircase

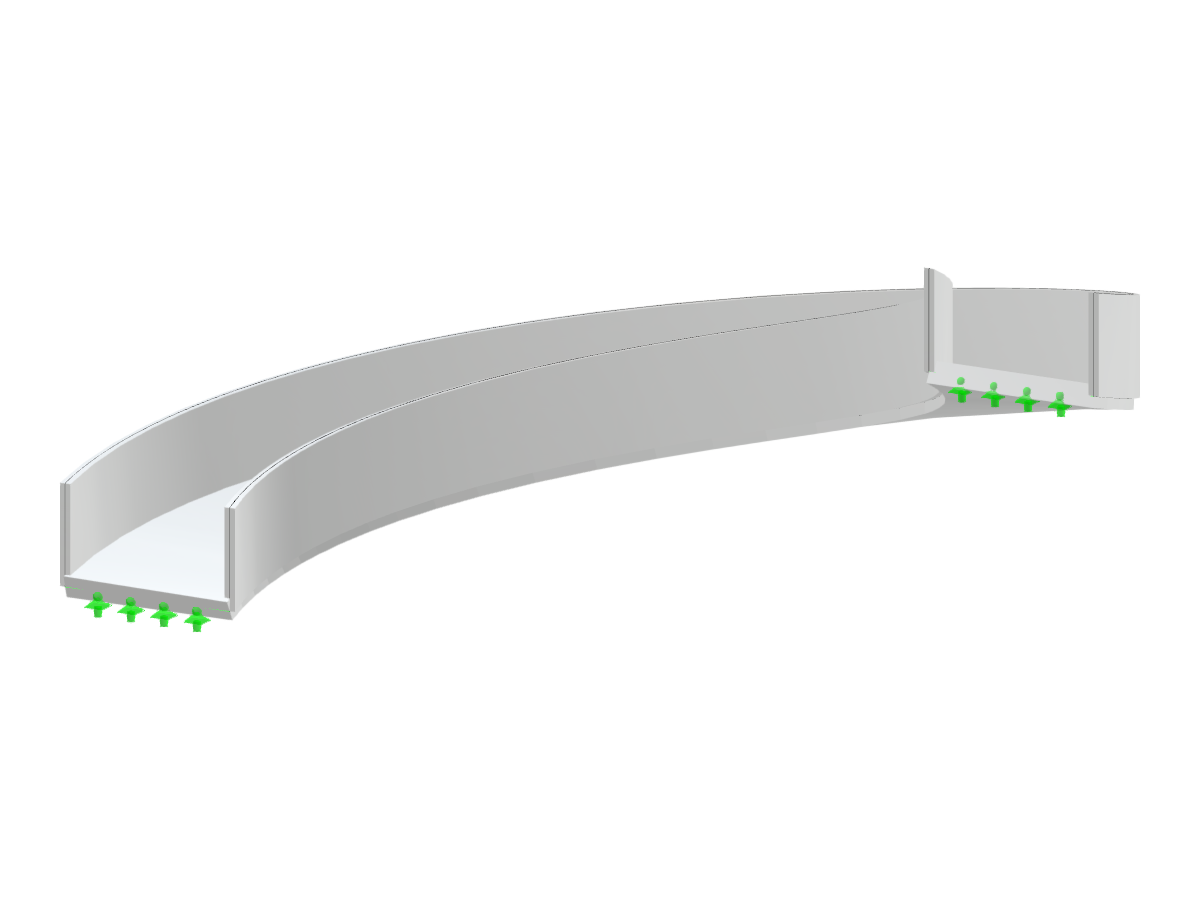

Single-flight right-hand semi-elliptical concrete staircase shown in a construction modeling environment.
The image depicts a concrete semi-elliptical staircase with a single-flight and right-hand orientation. The staircase is likely intended for internal architecture due to its design. It showcases the curvature and material suggestive of architectural styling. The structure is set in a virtual modeling environment, used for structural analysis or design purposes.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 84 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 13.949 tons |
| Dimensions (Metric) | 10.006 x 3.900 x 3.567 m |
| Dimensions (Imperial) | 32.83 x 12.8 x 11.7 feet |
