Concrete Cylindrical Staircase with Midlanding
A single-flight cylindrical staircase with a left-hand orientation and a midlanding, constructed from concrete, showcasing modern structural design.

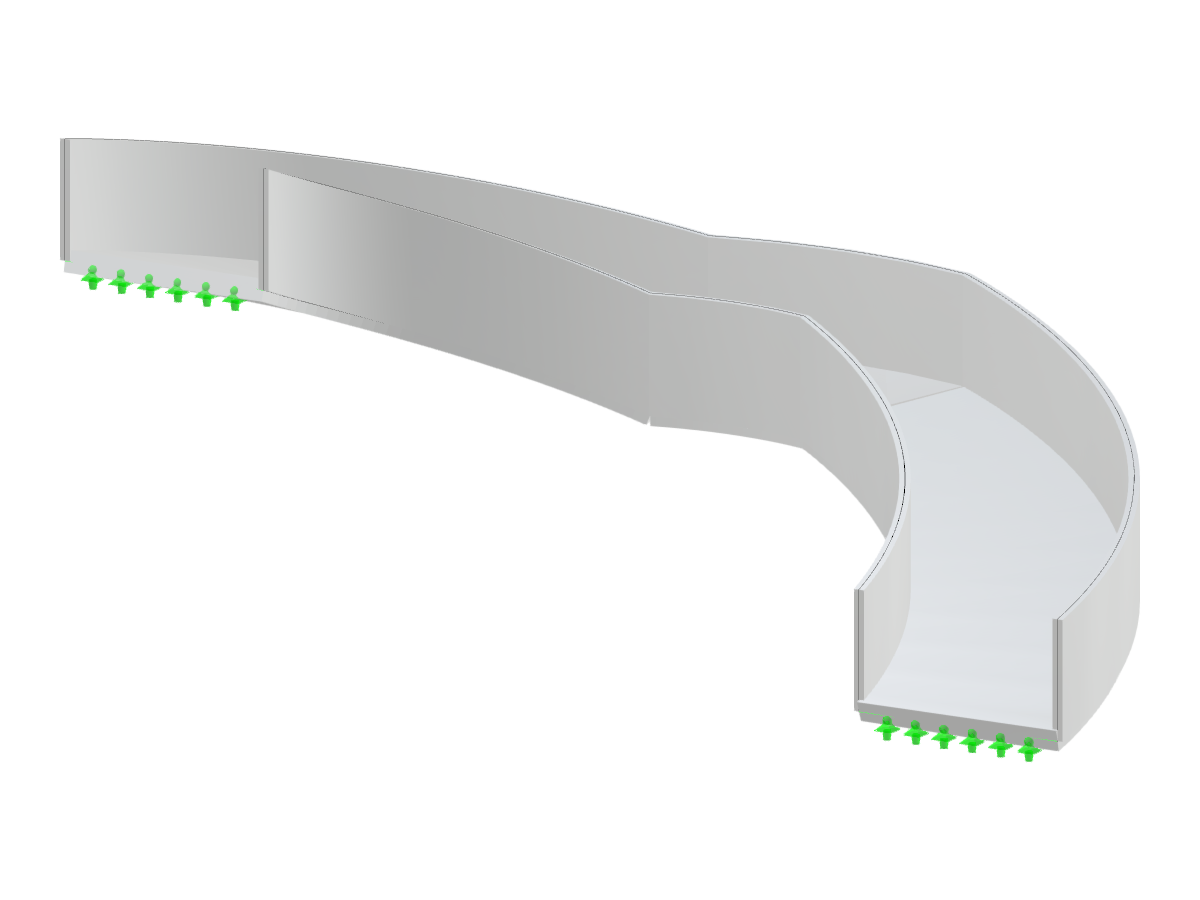

The image features a single-flight cylindrical staircase, oriented to the left, with a midlanding. The structure is crafted from concrete, emphasizing a sleek and modern architectural style. The staircase is designed to seamlessly connect different levels while maintaining aesthetic appeal.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 88 |
| Number of Lines | 96 |
| Number of Members | 0 |
| Number of Surfaces | 9 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 19.907 tons |
| Dimensions (Metric) | 10.000 x 4.100 x 5.000 m |
| Dimensions (Imperial) | 32.81 x 13.45 x 16.4 feet |
