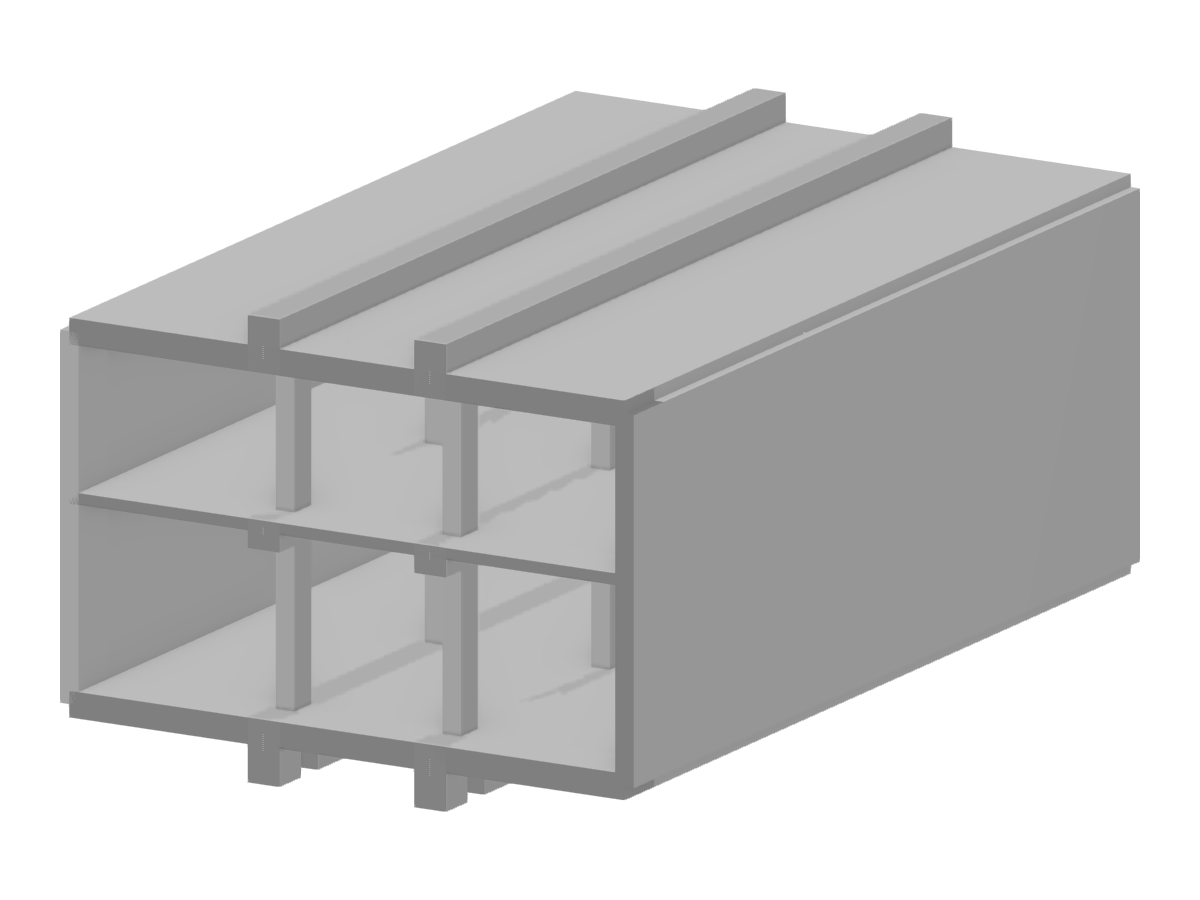

Model 003993 | Concrete Member and Surface Model of a Metro Station Structure Segment for Internal Force Analysis.
Model 003993 | Metro Station
Used in
3D Model
Specifications
| Number of Nodes | 72 |
| Number of Lines | 154 |
| Number of Members | 46 |
| Number of Surfaces | 65 |
| Number of Solids | 0 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 6451.469 tons |
| Dimensions (Metric) | 21.000 x 12.650 x 33.170 m |
| Dimensions (Imperial) | 68.9 x 41.5 x 108.83 feet |
