Three-Flight Concrete Staircase Design

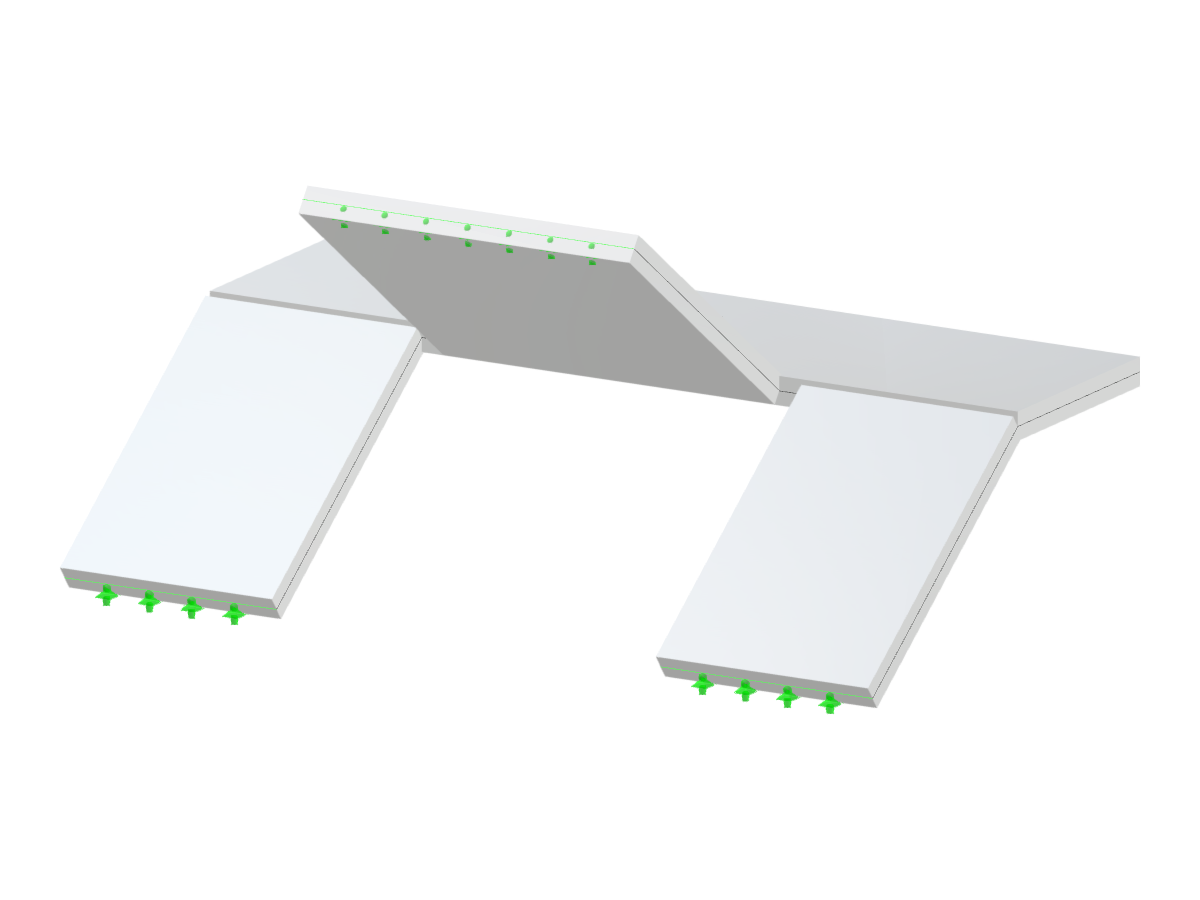

Concrete staircase with three flights, featuring divided return flights. Efficient design for load distribution.
The image shows a concrete staircase with three flights, incorporating divided return flights for efficient distribution of loads. Suitable for various construction applications, the staircase exemplifies structural optimization and practicality in design.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 14 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 11.606 tons |
| Dimensions (Metric) | 6.100 x 2.800 x 3.500 m |
| Dimensions (Imperial) | 20.01 x 9.19 x 11.48 feet |
