Cantilever with Rectangular Profile Surfaces

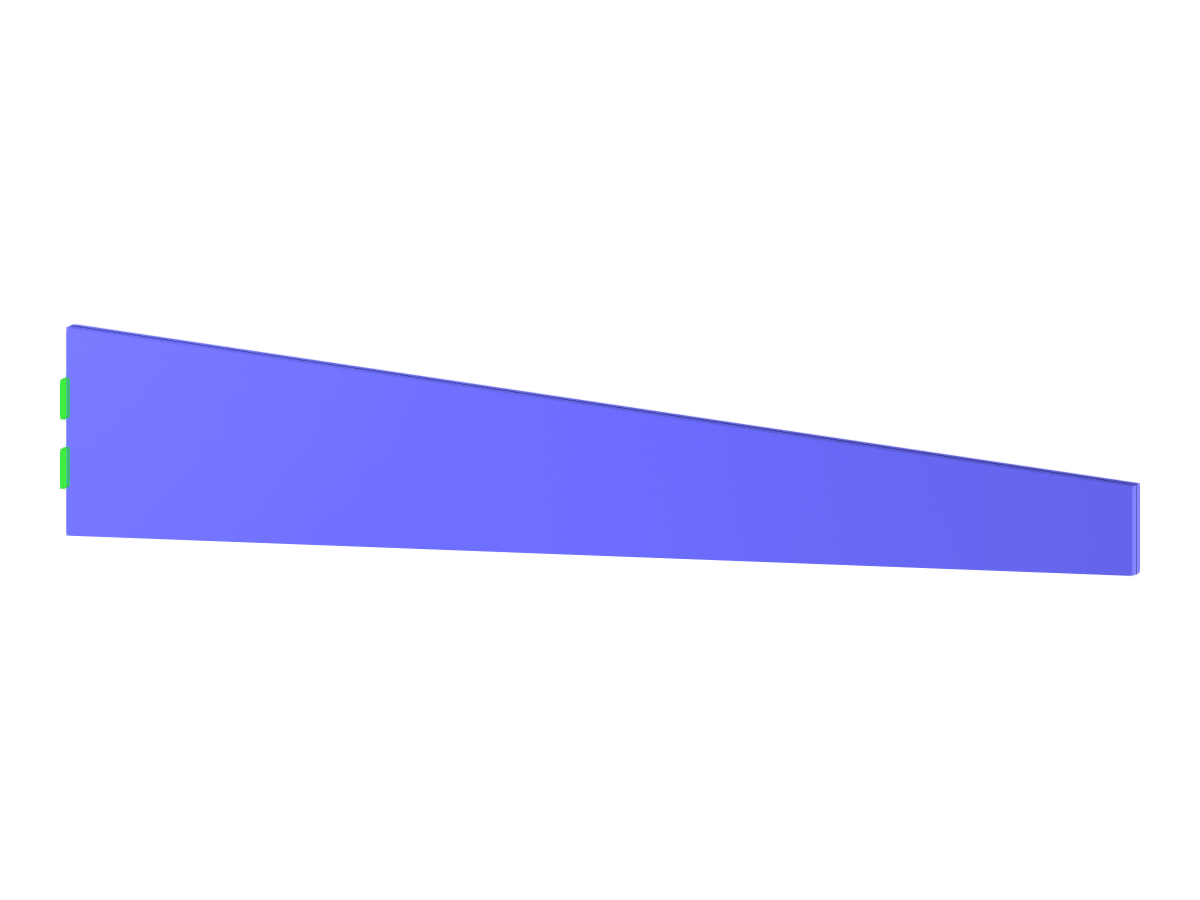

Engineering image showing a cantilever structure created with surfaces and featuring a rectangular profile.
The image illustrates a cantilever structure designed using surfaces, characterized by a distinct rectangular profile. This engineering model demonstrates the application of surface modeling techniques for structural elements, focusing on load capacity and material efficiency.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.471 tons |
| Dimensions (Metric) | 2.000 x 0.350 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 1.15 x 0 feet |
