Corrugated Sheet Structure with Spline Curve

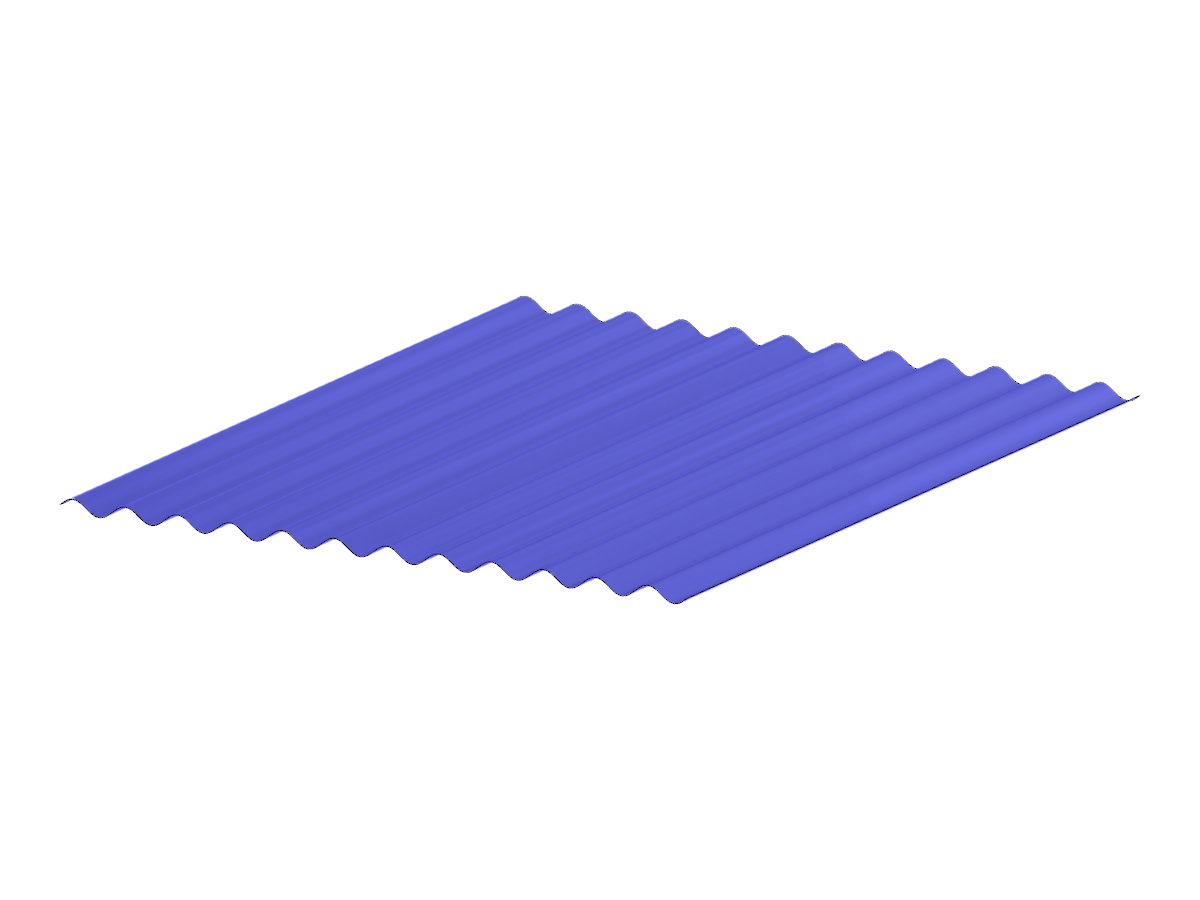

Corrugated sheet structure showcasing a curve formed by a spline in an engineering context.
The image illustrates a corrugated sheet featuring a curve created by a spline. The technique highlights the versatility and adaptability of the spline method in structural design to form complex shapes. This method is commonly utilized to achieve smooth and precise curves in engineering applications.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 290 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.064 tons |
| Dimensions (Metric) | 2.400 x 0.056 x 3.000 m |
| Dimensions (Imperial) | 7.87 x 0.18 x 9.84 feet |
