Steel Silo Design with Spherical Zone Roof

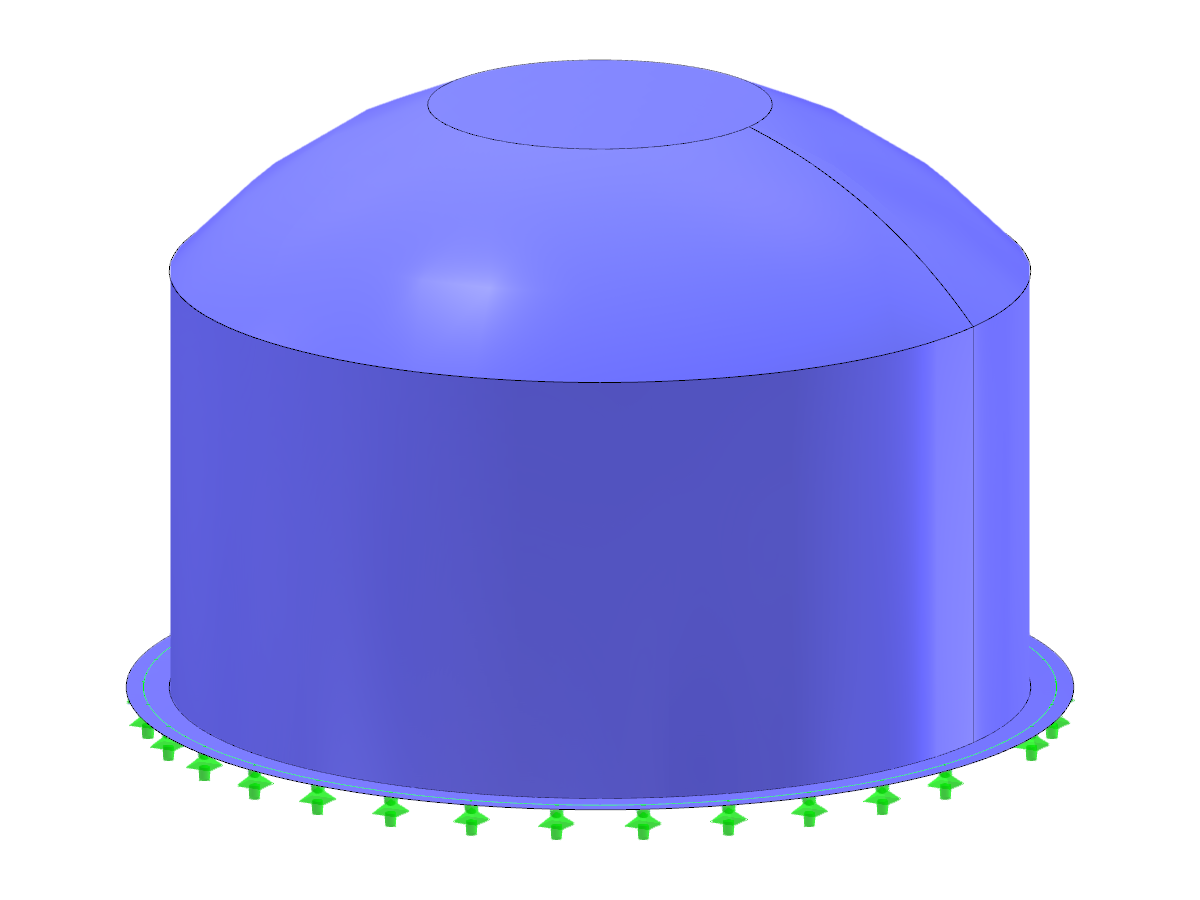

Circular steel silo featuring a spherical roof section in a detailed structural design.
The image depicts a round steel silo designed with a circular plan and a distinctive spherical zone roof. This structural configuration is often used for industrial storage purposes due to its efficiency in handling bulk materials. Such designs are crucial for ensuring structural integrity and load distribution. The spherical roof aids in preventing material accumulation and facilitates smooth discharge. The combination of circular and spherical geometry offers both aesthetic and functional benefits.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 7 |
| Number of Lines | 7 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 74.446 tons |
| Dimensions (Metric) | 11,000 x 7,000 x 11,000 m |
| Dimensions (Imperial) | 36.09 x 22.97 x 36.09 feet |
