Steel Silo with Circular Plan and Spherical Roof
Steel silo with a circular base and a spherical zone roof, designed for efficient storage and structural stability.

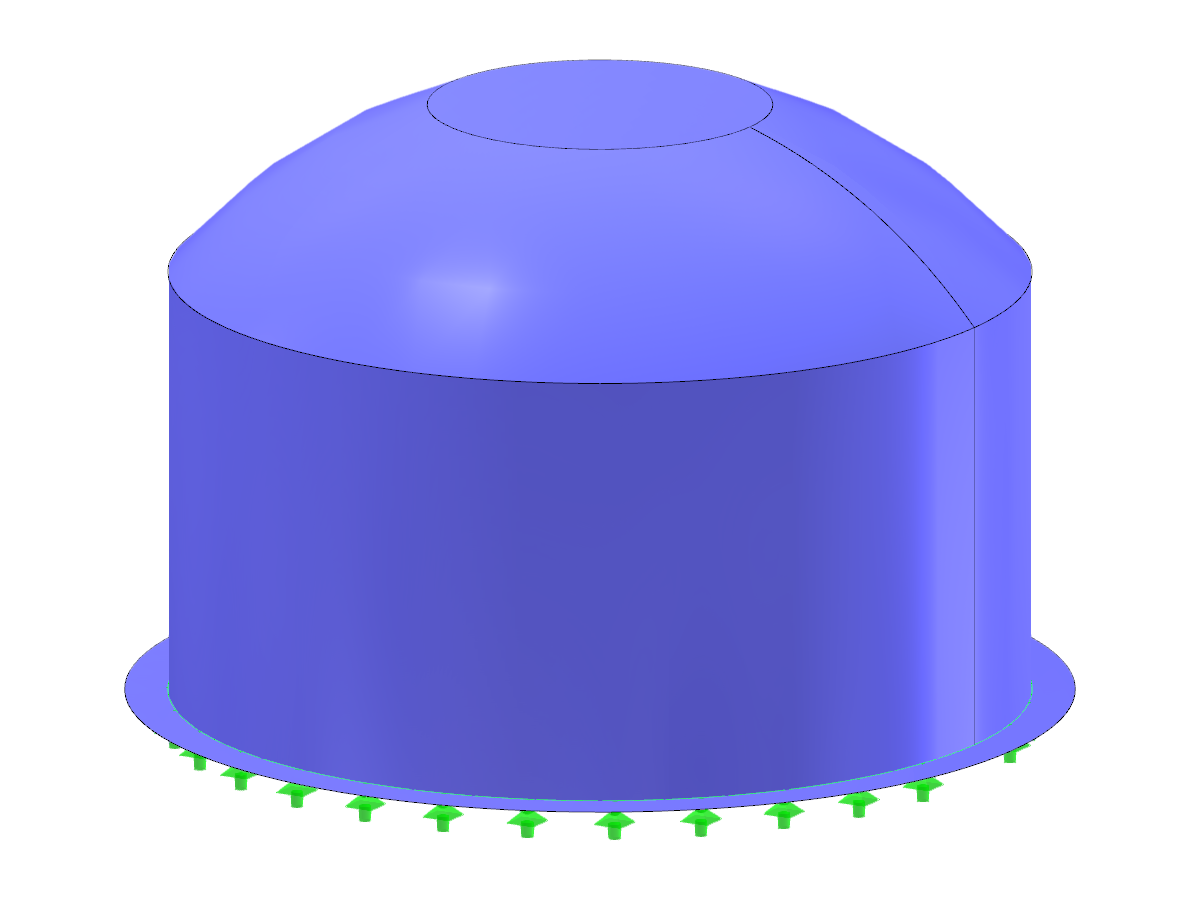

The image shows a steel silo featuring a circular plan with a spherical zone roof. This design is optimized for efficient storage and provides enhanced structural stability for storing various materials. The use of steel ensures durability and longevity in industrial applications. The spherical roof aids in effective weight distribution and weather resistance.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 74.446 tons |
| Dimensions (Metric) | 11,000 x 7,000 x 11,000 m |
| Dimensions (Imperial) | 36.09 x 22.97 x 36.09 feet |
