Parametric Circular Basin Using Concrete Surfaces
Parametric model of a circular concrete basin designed with surfaces, highlighting geometrical complexity and structural efficiency.

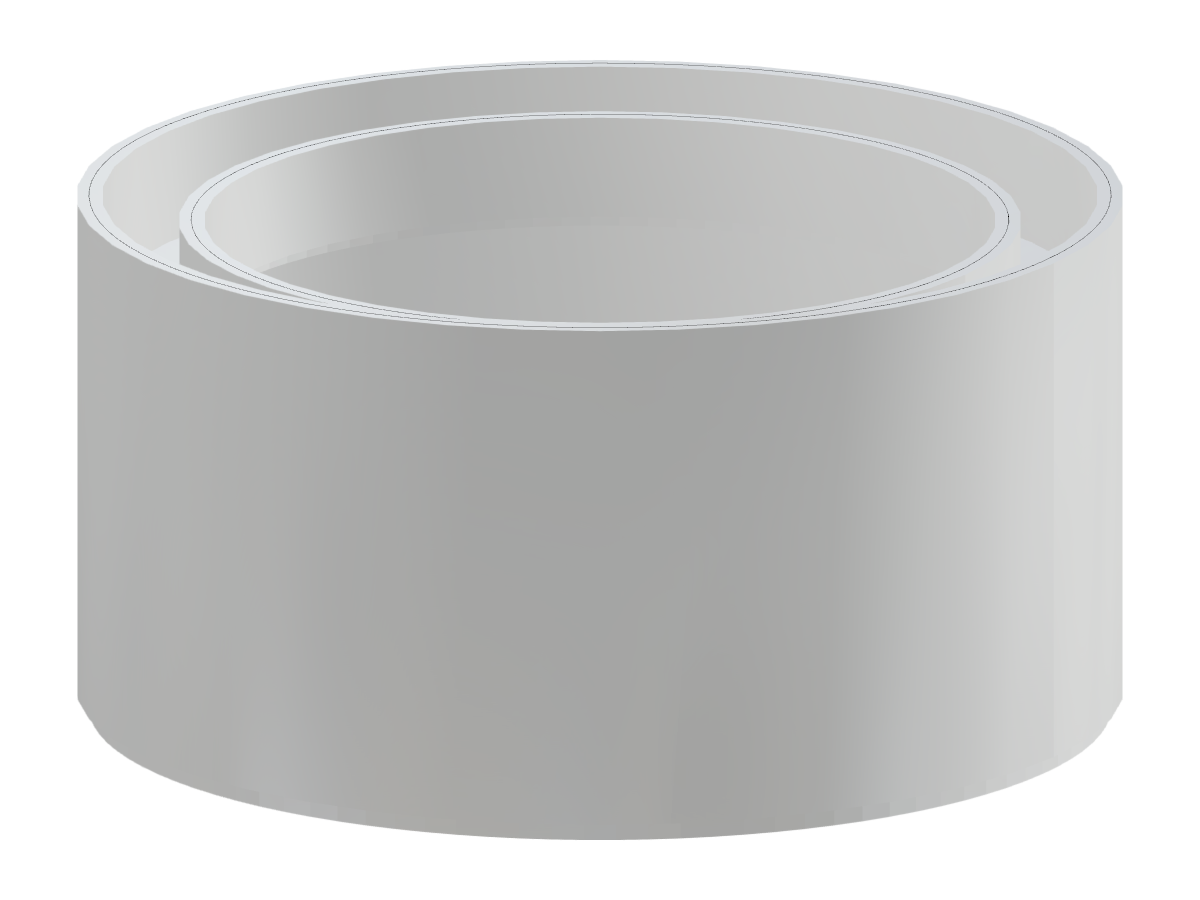

The image captures a parametric model of a circular concrete basin, constructed using advanced concrete surfaces. The design showcases the intricate geometry and precise structural alignment achieved through parametric modeling techniques. The emphasis is on seamless surface connections and the optimized structure of the basin.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 7 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 105.053 tons |
| Dimensions (Metric) | 8,000 x 4,000 x 8,000 m |
| Dimensions (Imperial) | 26.25 x 13.12 x 26.25 feet |
