Concrete Wall With Door Opening In U Shape
Concrete wall structure shaped in a U with a singular door opening. Constructed for architectural and structural analysis purposes.

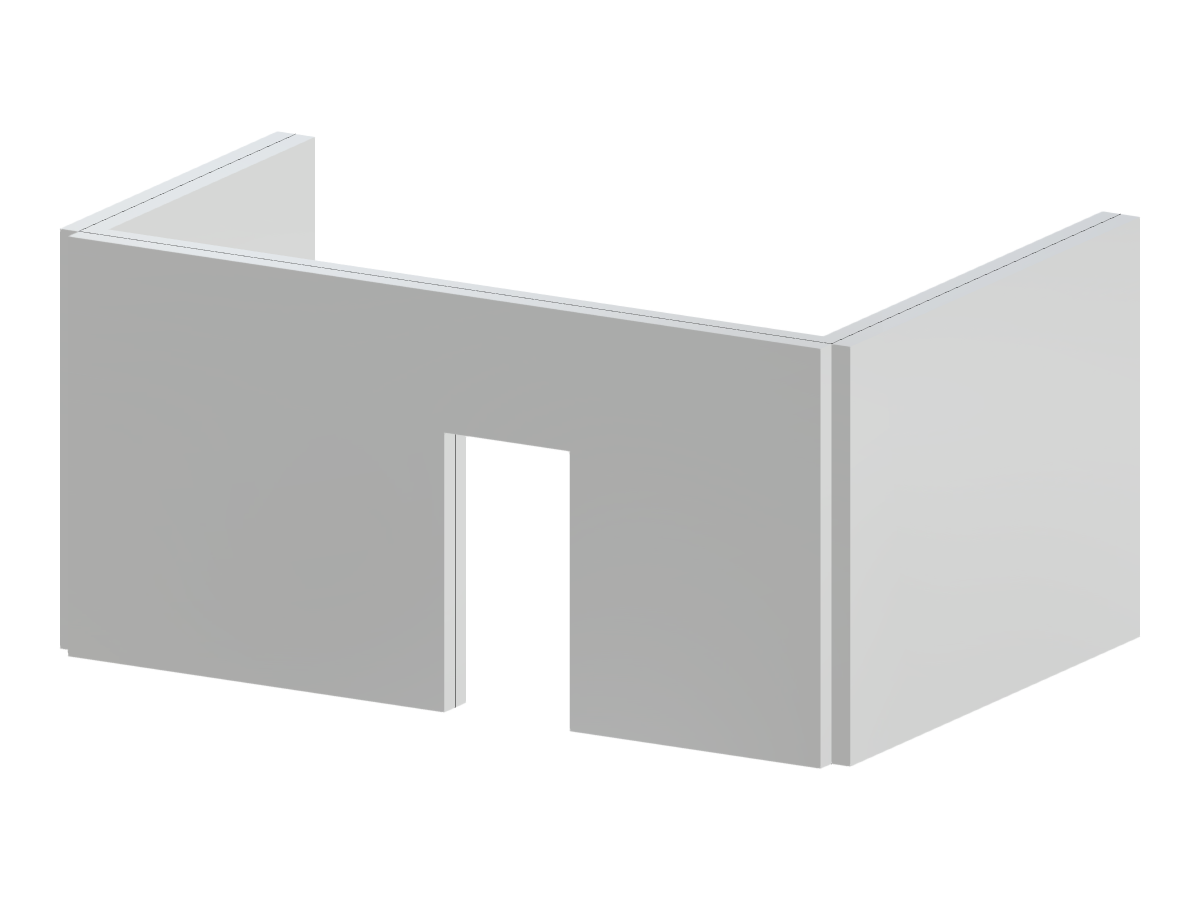

The image depicts a concrete wall modeled in a U shape featuring a single opening that serves as a door. This configuration is commonly analyzed for its structural integrity and stability within architectural contexts. No additional information regarding the author is provided.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 14 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 27.750 tons |
| Dimensions (Metric) | 6,000 x 3,000 x 4,000 m |
| Dimensions (Imperial) | 19.69 x 9.84 x 13.12 feet |
