Circular Slab with Opening

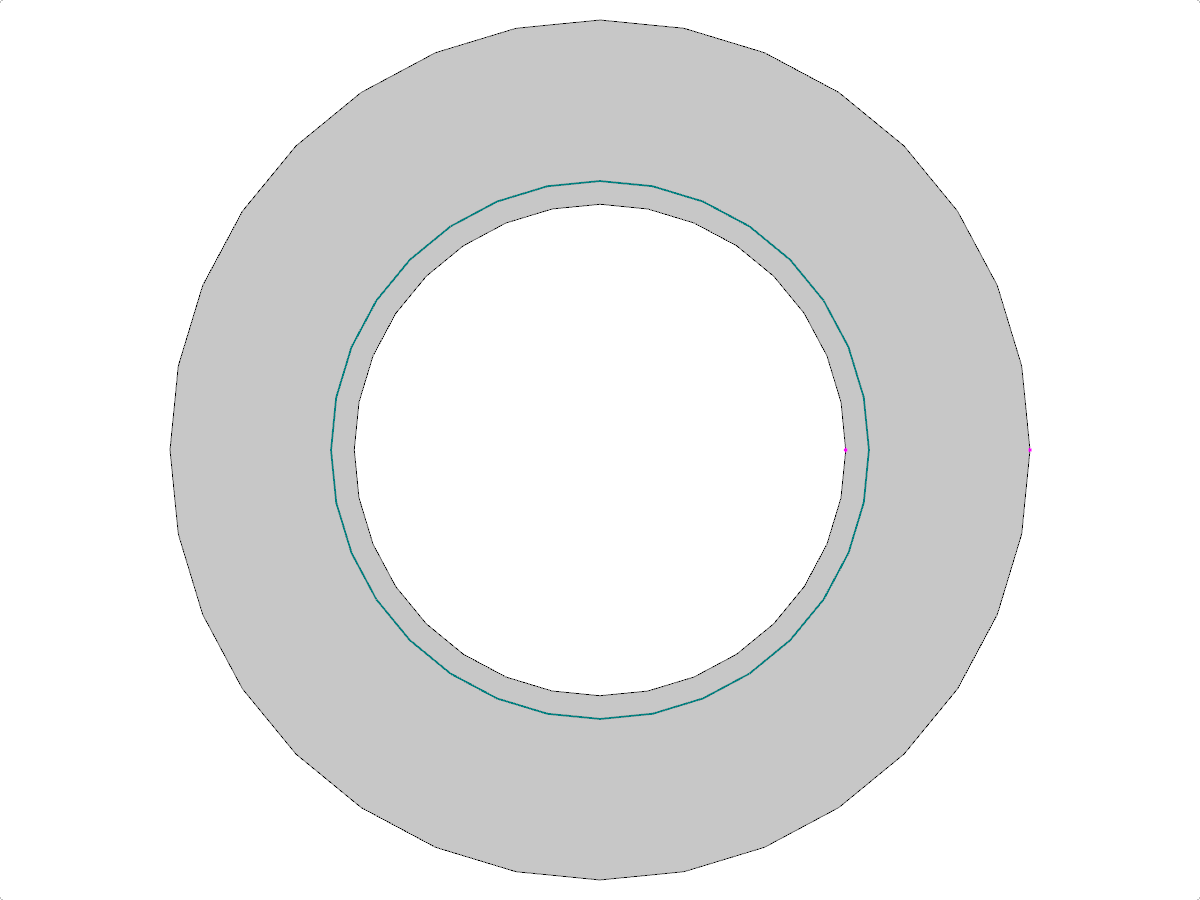

The image shows a circular slab with a central circular opening used in structural analysis.
The image displays a detailed view of a circular concrete slab featuring a central circular opening. This setup is typically used to study load distribution and stress concentration around the opening. The slab is analyzed to understand structural behavior in engineering applications. This configuration may help in applications involving utility entries or aesthetic architectural design. No caption indicating a specific photographer is provided.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 2 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 25.918 tons |
| Dimensions (Metric) | 14.000 x 0.000 x 14.000 m |
| Dimensions (Imperial) | 45.93 x 0 x 45.93 feet |
