Asymmetric Obround Prism Structure Analysis

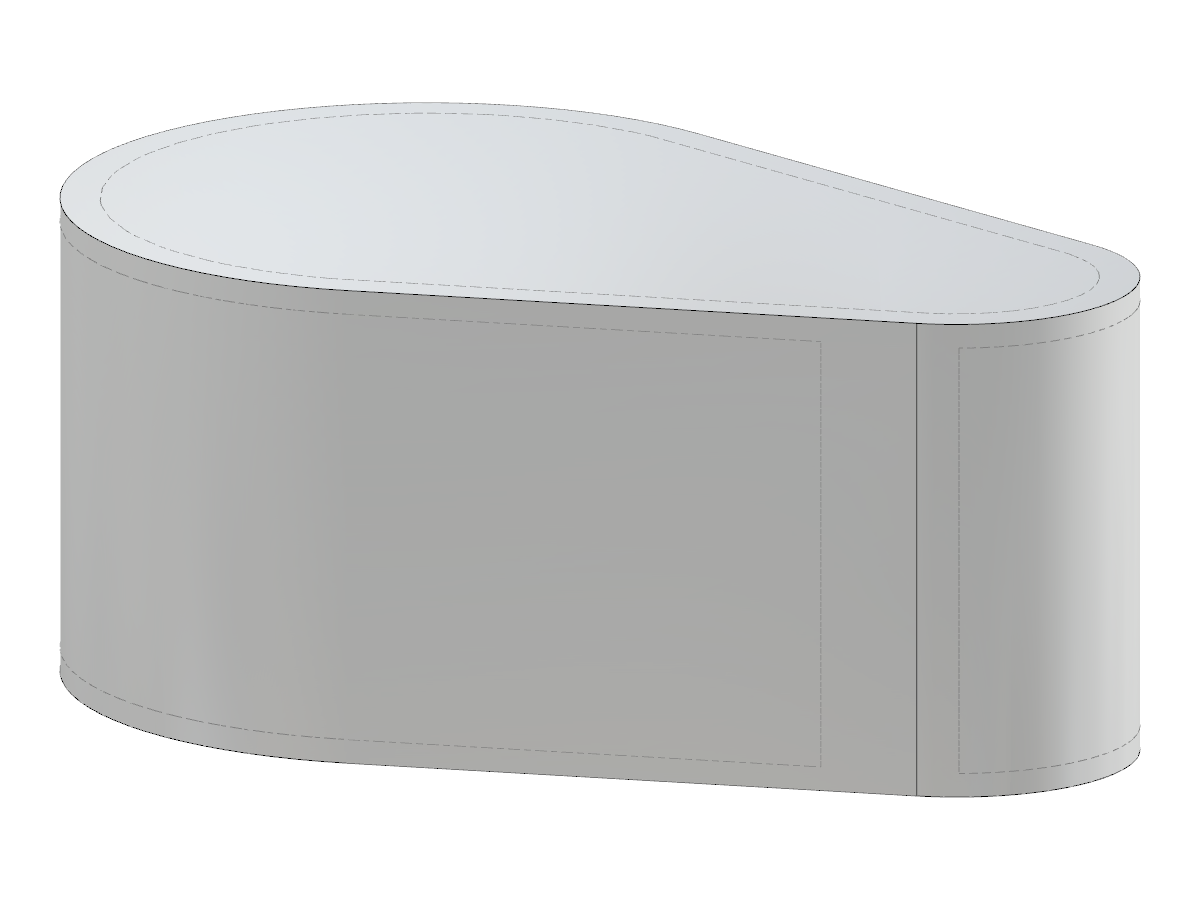

A detailed view of an asymmetric obround prism showcasing structural analysis design, highlighting asymmetrical features and calculations.
The image presents an asymmetric obround prism used in structural analysis. The shape of the prism is distinguished by its rounded corners and elongated form. This geometry is commonly considered for complex structural designs due to its unique asymmetrical features.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 413.326 tons |
| Dimensions (Metric) | 9.500 x 4.000 x 6.000 m |
| Dimensions (Imperial) | 31.17 x 13.12 x 19.69 feet |
