Obround Cylinder Structural Visualization

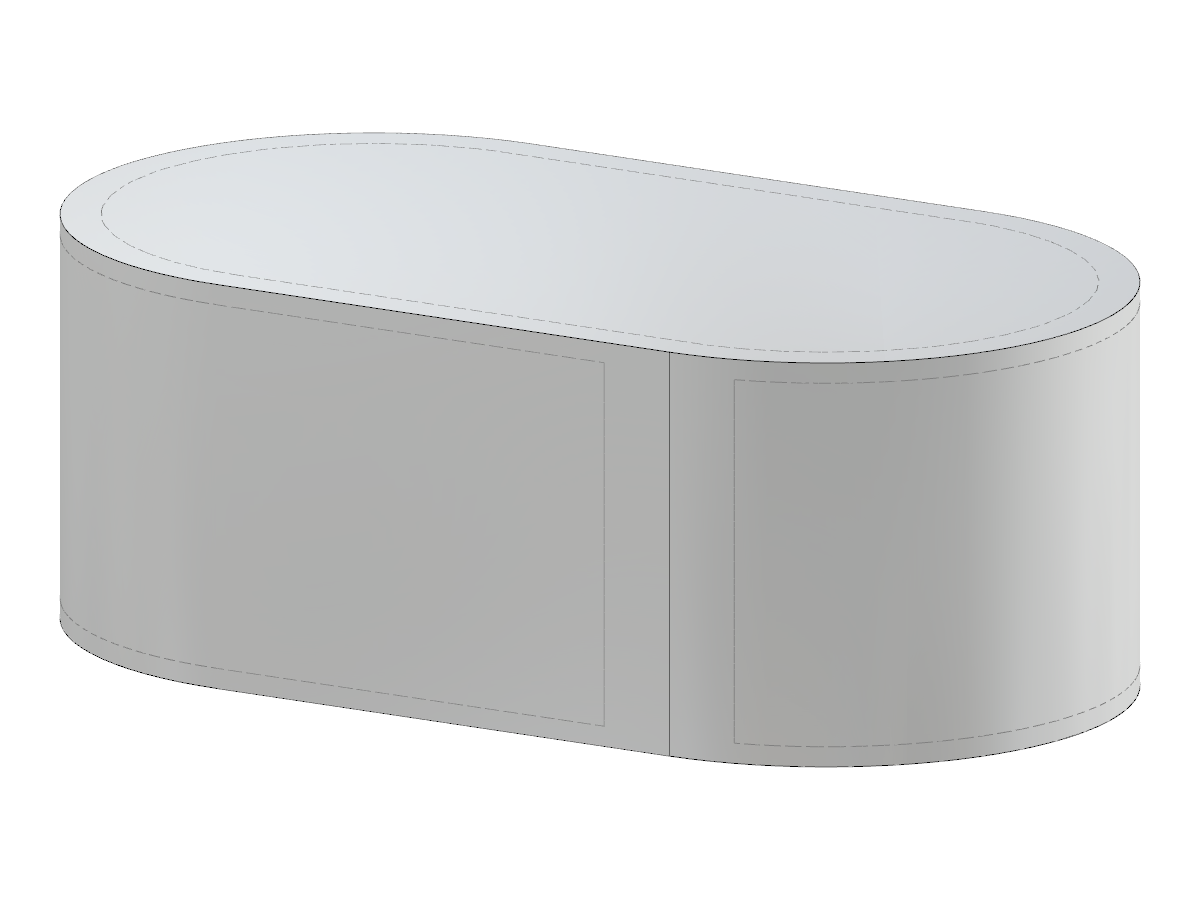

Structural rendering of an obround cylinder showcasing its geometric configuration in a technical context.
The image presents a detailed rendering of an obround cylinder used in engineering contexts. It highlights the unique geometric configuration of the cylinder, showcasing its practical application in structural analysis. The visualization aids in understanding the spatial complexity and potential application of such a structure in real-world scenarios.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 585.324 tons |
| Dimensions (Metric) | 11.000 x 4.000 x 6.000 m |
| Dimensions (Imperial) | 36.09 x 13.12 x 19.69 feet |
