Pyramid Model with Parametric JavaScript Input
Pyramid with adjustable dimensions using JavaScript for edge, circumscribed or inscribed circle inputs.

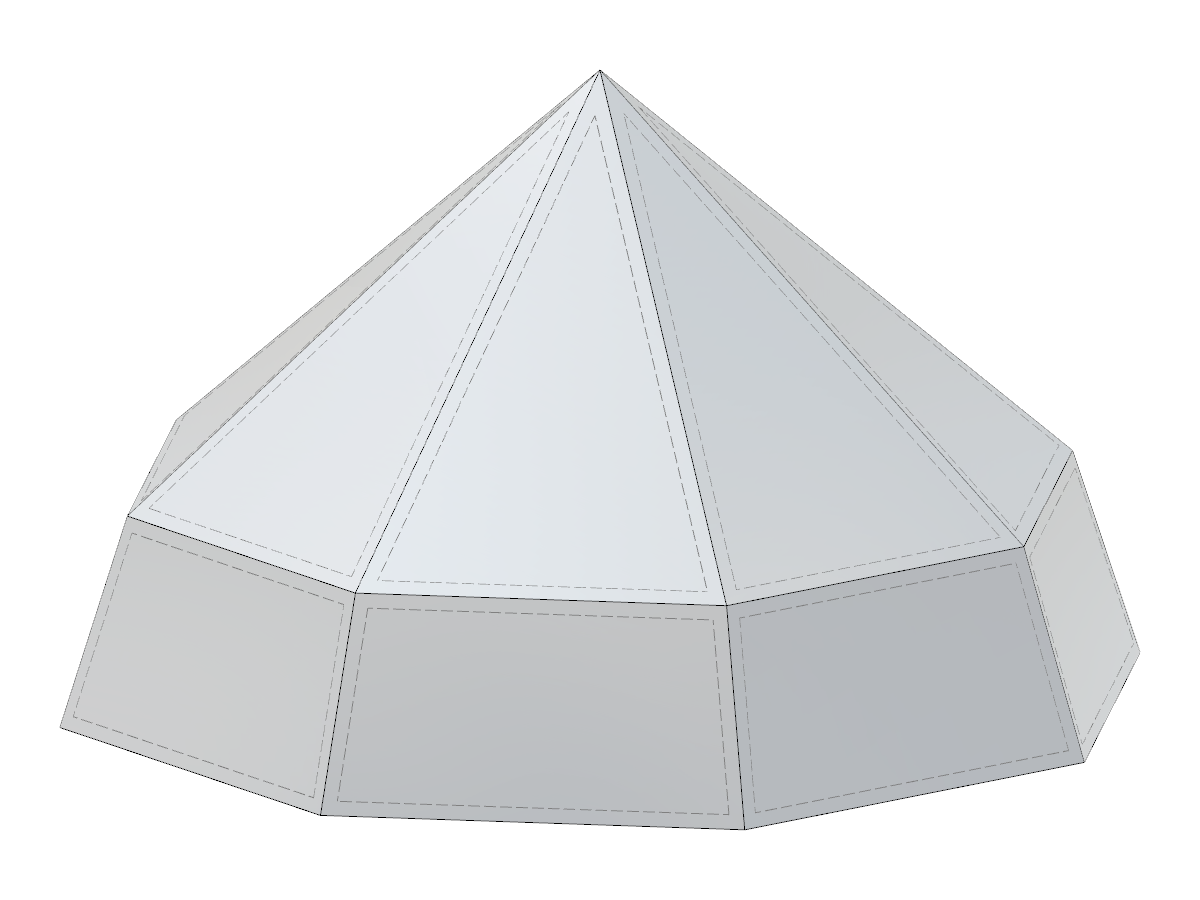

The image shows a 3D model of a pyramid with a tapered bottom part. The pyramid's dimensions can be parametrically adjusted using a JavaScript block. Users can input data such as the length of the edge or the radius of the circumscribed or inscribed circle to modify the design.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 32 |
| Number of Members | 0 |
| Number of Surfaces | 17 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 537.163 tons |
| Dimensions (Metric) | 10,453 x 6,000 x 10,453 m |
| Dimensions (Imperial) | 34.29 x 19.69 x 34.29 feet |
