Octagonal Prism with Parametric Input Options

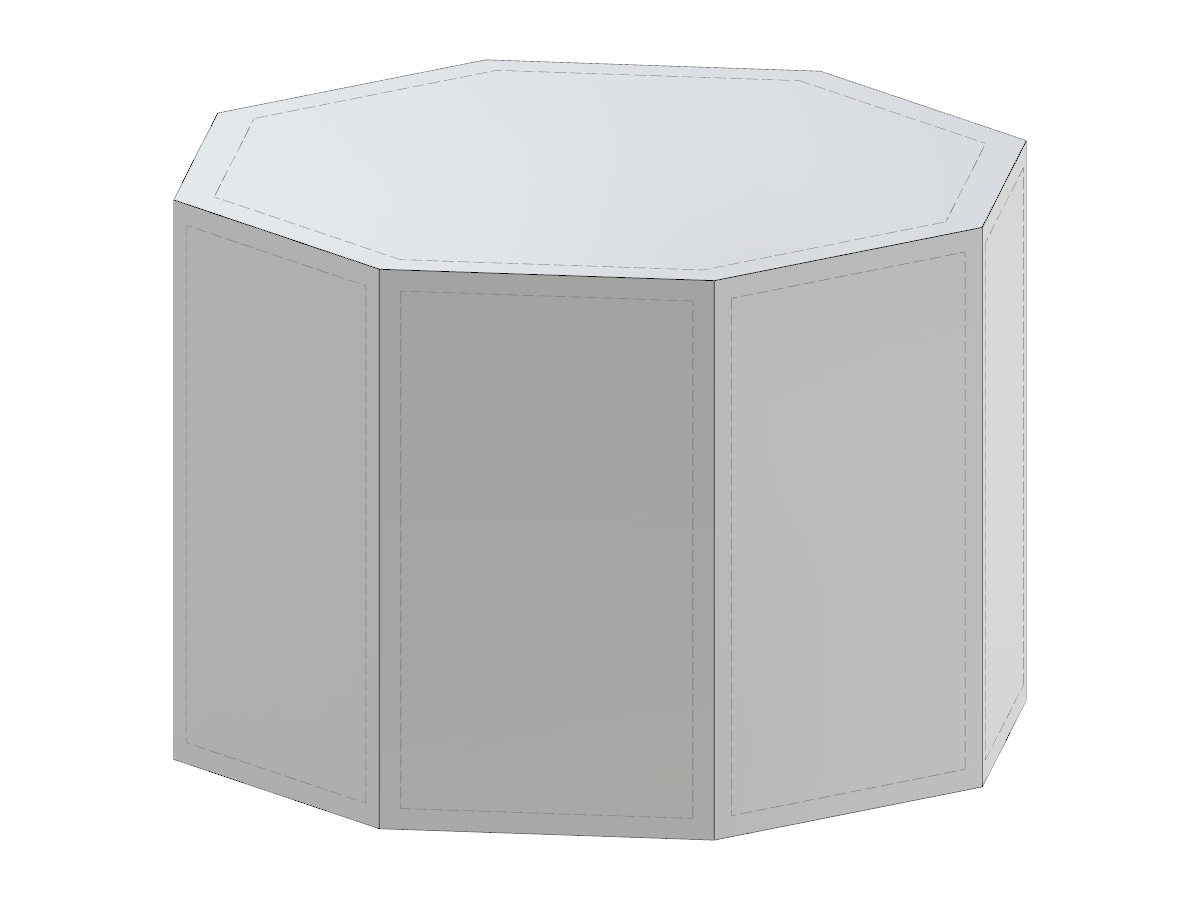

Illustration of an octagonal prism showing parametric input options using JavaScript, allowing for length of edge, circumscribed circle radius, or inscribed circle radius adjustments.
The image depicts an octagonal prism that can be modeled using a parametric JavaScript block. The input can be adjusted via the length of its edge, the radius of the circumscribed circle, or the radius of the inscribed circle. These parametric options enable flexible and precise modeling adjustments.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 24 |
| Number of Members | 0 |
| Number of Surfaces | 10 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 887.224 tons |
| Dimensions (Metric) | 9.146 x 6.000 x 9.146 m |
| Dimensions (Imperial) | 30.01 x 19.69 x 30.01 feet |
