Truncated Pyramid with Tapered Base and Parametric Input Options
3D truncated pyramid model with a tapered base, featuring parametric input options including edge length and circle radii.

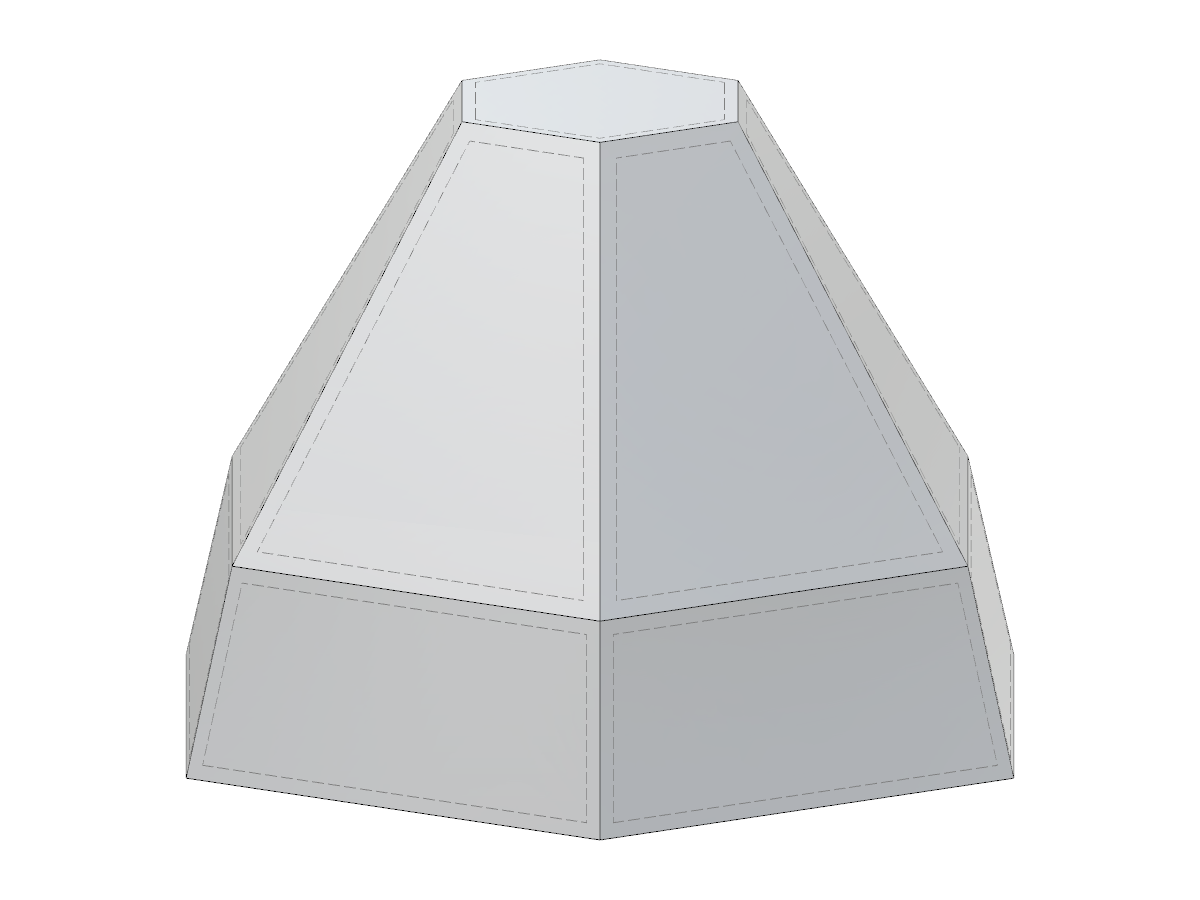

The image displays a 3D model of a truncated pyramid with a tapered bottom part. It incorporates a parametric approach using JavaScript, allowing users to input dimensions based on edge length, circumscribed circle radius, or inscribed circle radius for flexible modeling.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 18 |
| Number of Lines | 30 |
| Number of Members | 0 |
| Number of Surfaces | 14 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 444.921 tons |
| Dimensions (Metric) | 9.000 x 6.000 x 7.794 m |
| Dimensions (Imperial) | 29.53 x 19.69 x 25.57 feet |
