Truncated Hexagonal Pyramid with Parametric Input Options

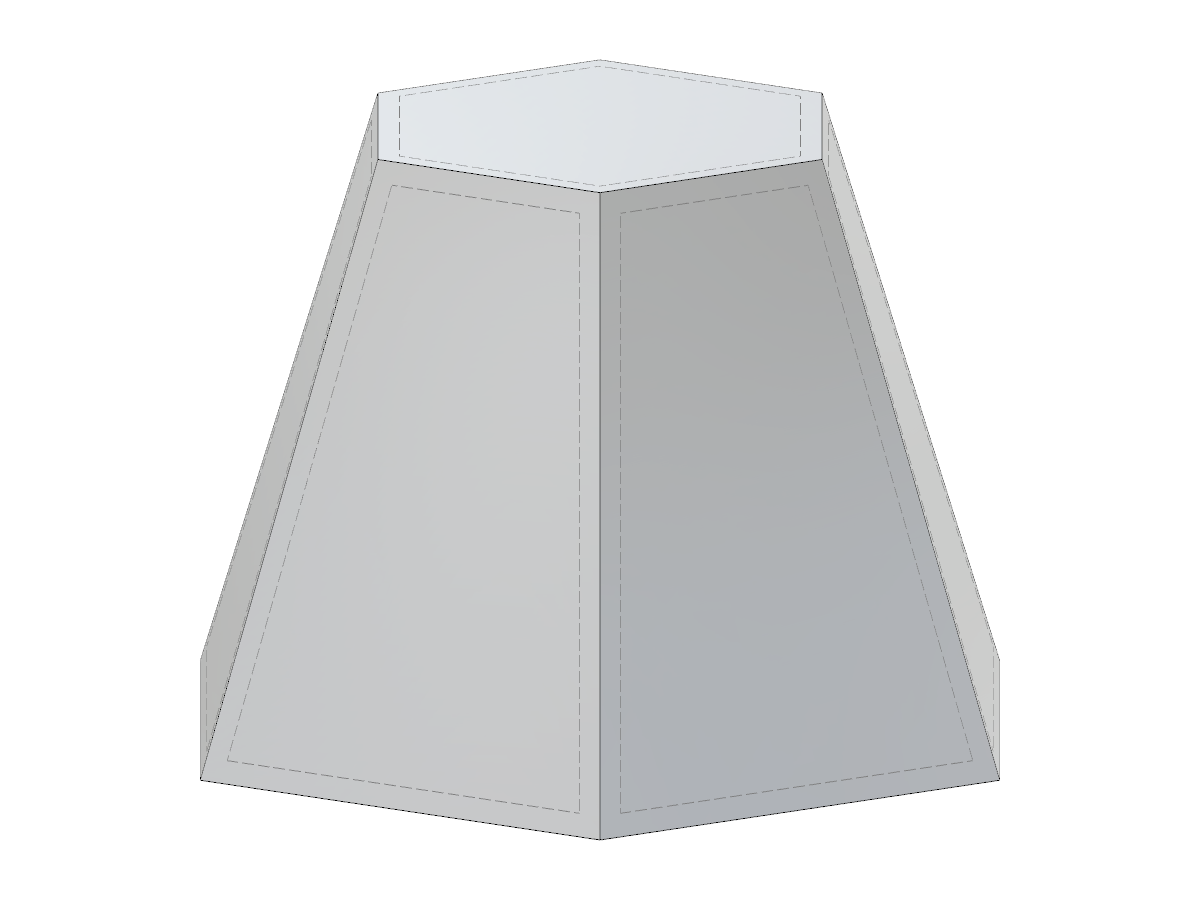

A parametric 3D model of a truncated hexagonal pyramid generated using JavaScript, accepting inputs such as edge length, circumscribed and inscribed circle radii.
The image depicts a geometric 3D model of a truncated hexagonal pyramid. It is created parametrically using a JavaScript block, where users can input values for the pyramid's edge length, and either the circumscribed or inscribed circle radius. The model employs complex geometrical calculations to visualize the shape accurately based on the provided parameters. This demonstration highlights the flexibility and precision of parametric design practices.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 18 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 490.387 tons |
| Dimensions (Metric) | 9.000 x 6.000 x 7.794 m |
| Dimensions (Imperial) | 29.53 x 19.69 x 25.57 feet |
