Truncated Pyramid Geometry with Parametric Input
3D model of a truncated pyramid with a tapered bottom using JavaScript, adjustable via edge length, circumscribed or inscribed circle radius.

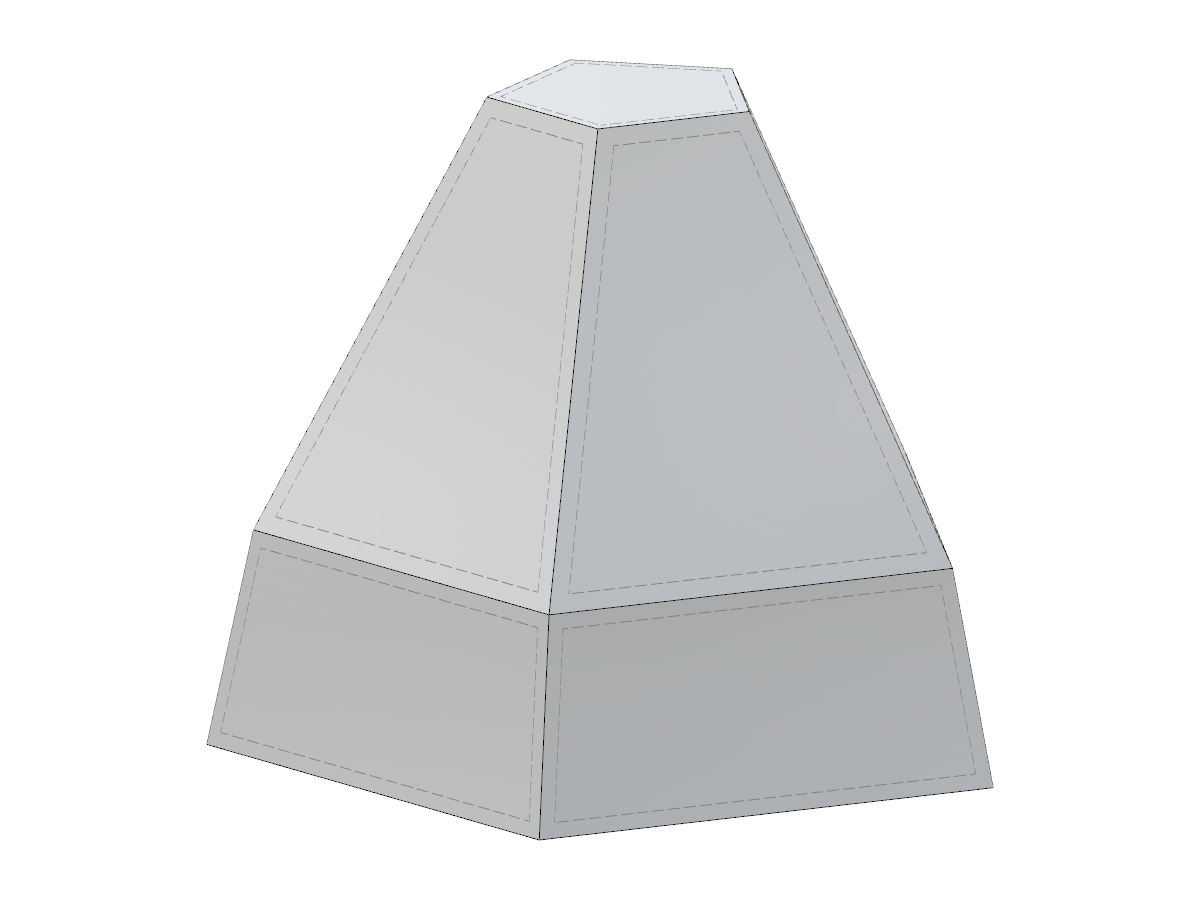

The image shows a 3D model of a truncated pyramid with a tapered bottom part, created using JavaScript. The model allows for parametric input, letting users adjust variables such as the length of the edge, the radius of the circumscribed circle, or the radius of the inscribed circle. This setup enables precise customization of geometric dimensions in engineering calculations.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 15 |
| Number of Lines | 25 |
| Number of Members | 0 |
| Number of Surfaces | 12 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 294.632 tons |
| Dimensions (Metric) | 6.925 x 6.000 x 7.281 m |
| Dimensions (Imperial) | 22.72 x 19.69 x 23.89 feet |
