Pyramid With Tapered Base and Parametric Block Input
Tapered base pyramid with parametric inputs of edge length, circumscribed circle radius or inscribed circle radius.

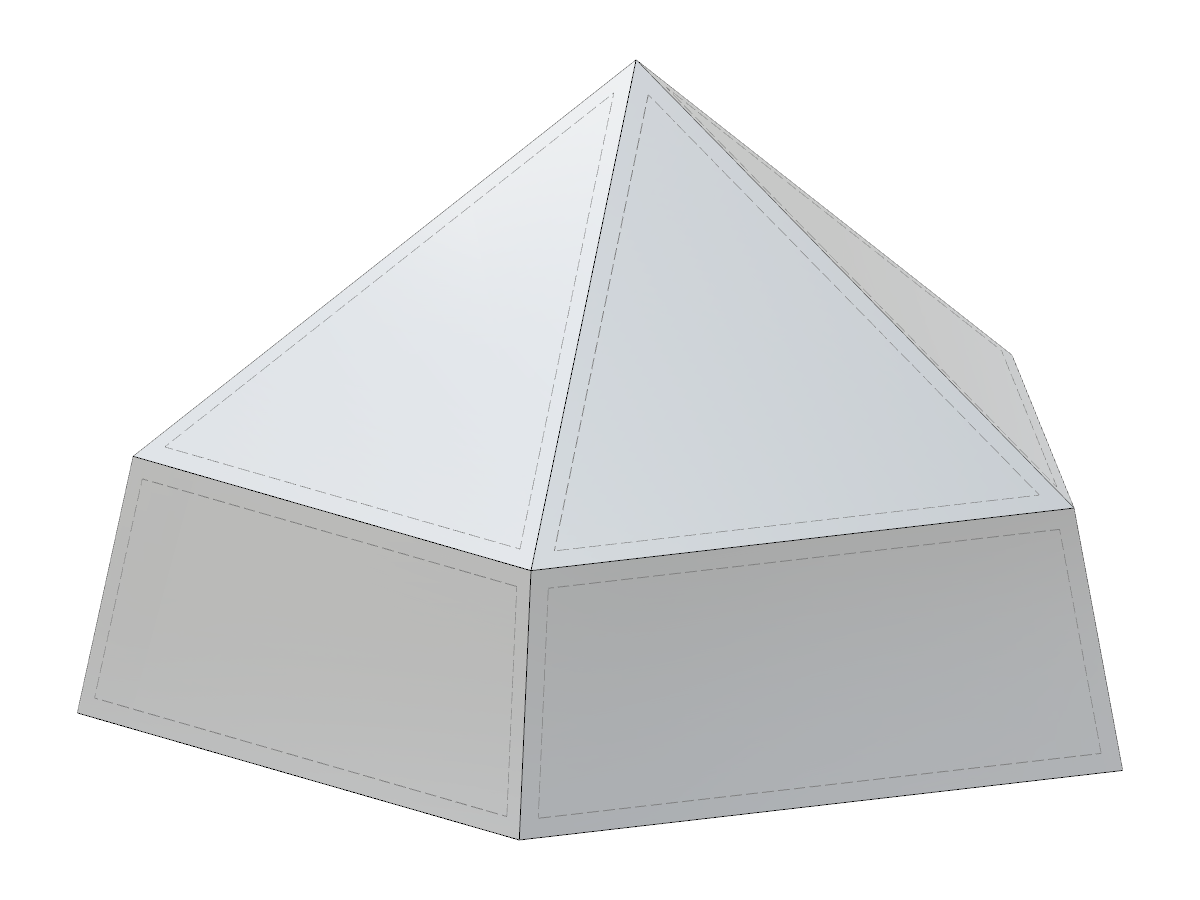

The image displays a geometric shape of a pyramid with a tapered bottom part. It incorporates a parametric JavaScript block which allows for input through either the length of an edge, the circumscribed circle radius, or the inscribed circle radius.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 20 |
| Number of Members | 0 |
| Number of Surfaces | 11 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 281.370 tons |
| Dimensions (Metric) | 7.694 x 5.000 x 8.090 m |
| Dimensions (Imperial) | 25.24 x 16.4 x 26.54 feet |
