Pentagonal Pyramid with Parametric Input Options

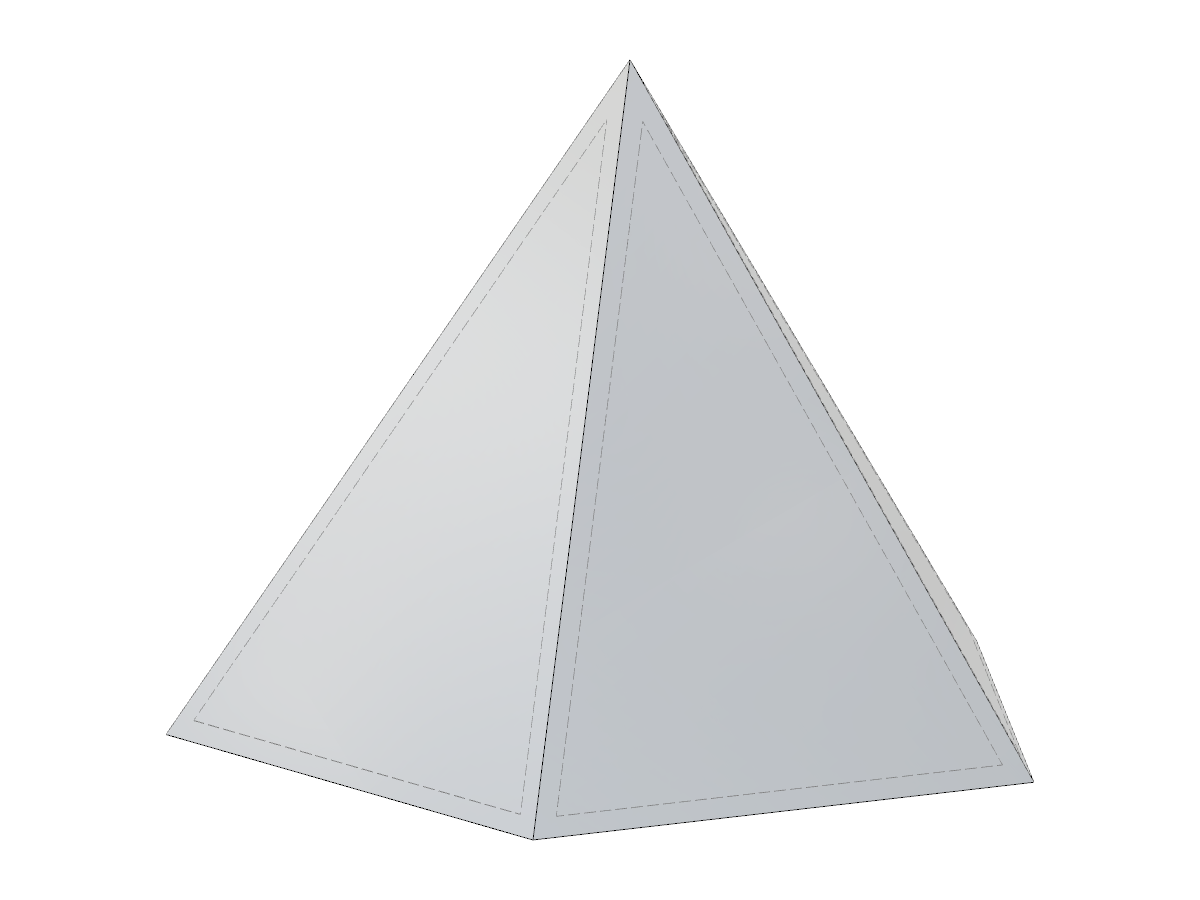

Pentagonal pyramid illustrated with options for adjusting input via length of edge, circumscribed circle radius, or inscribed circle radius.
The image features a parametric model of a pentagonal pyramid. It allows users to input parameters either by specifying the length of an edge, the radius of the circumscribed circle, or the radius of the inscribed circle. This flexibility enhances the ease of creating complex geometric shapes. The numeric relationships between these input methods illustrate the dynamic capabilities of the parametric design process.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 114.699 tons |
| Dimensions (Metric) | 6.155 x 5.000 x 6.472 m |
| Dimensions (Imperial) | 20.19 x 16.4 x 21.23 feet |
