Pyramid Structure with Circular Arc Elaboration

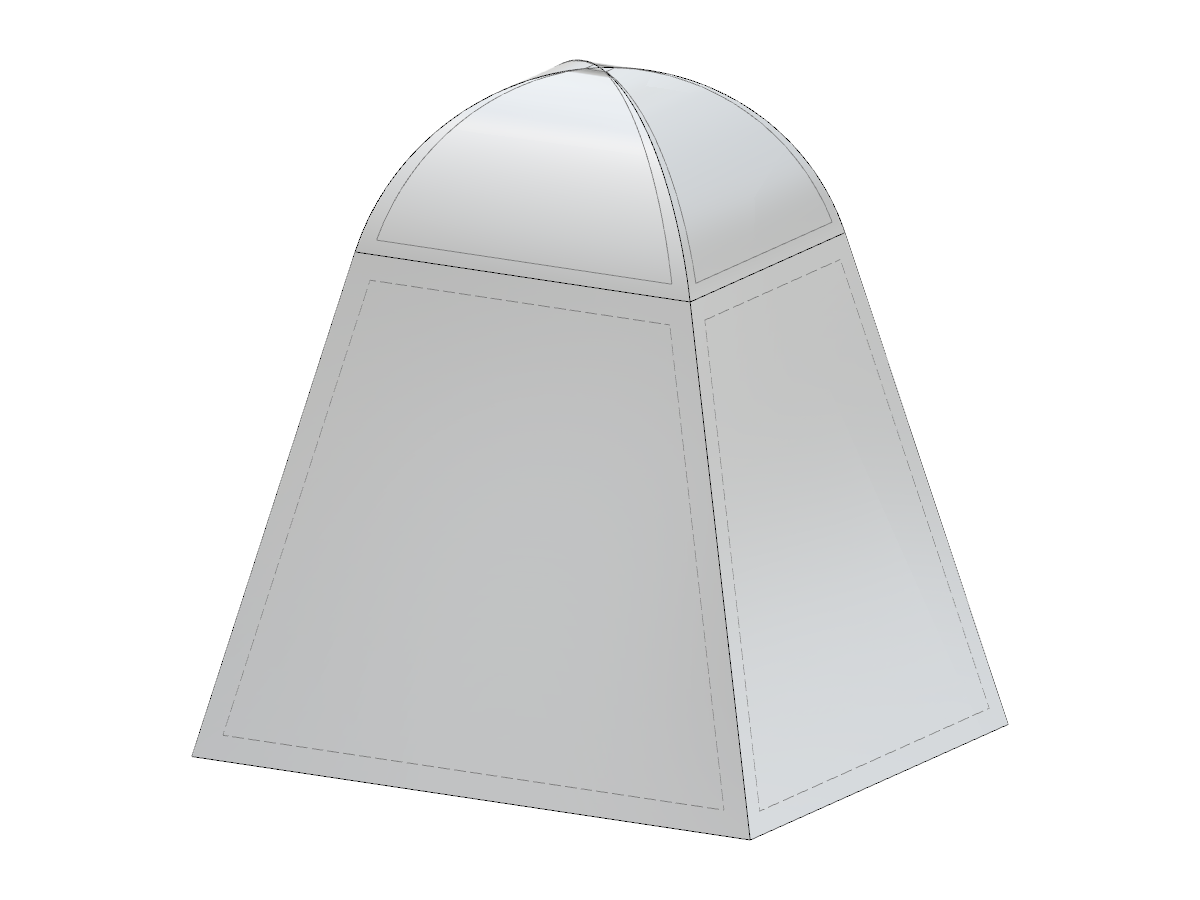

Structural detail showing a pyramid with a circular arc added on the top part, illustrating architectural complexity.
The image showcases a pyramid structure with a distinctive circular arc incorporated at the top section. This formation highlights a blend of geometric precision and architectural innovation. The circular arc adds an element of complexity and aesthetic value to the otherwise traditional pyramid form.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 9 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 145.525 tons |
| Dimensions (Metric) | 5.000 x 5.402 x 4.000 m |
| Dimensions (Imperial) | 16.4 x 17.72 x 13.12 feet |
