Truncated Pyramid Structure with Tapered Base

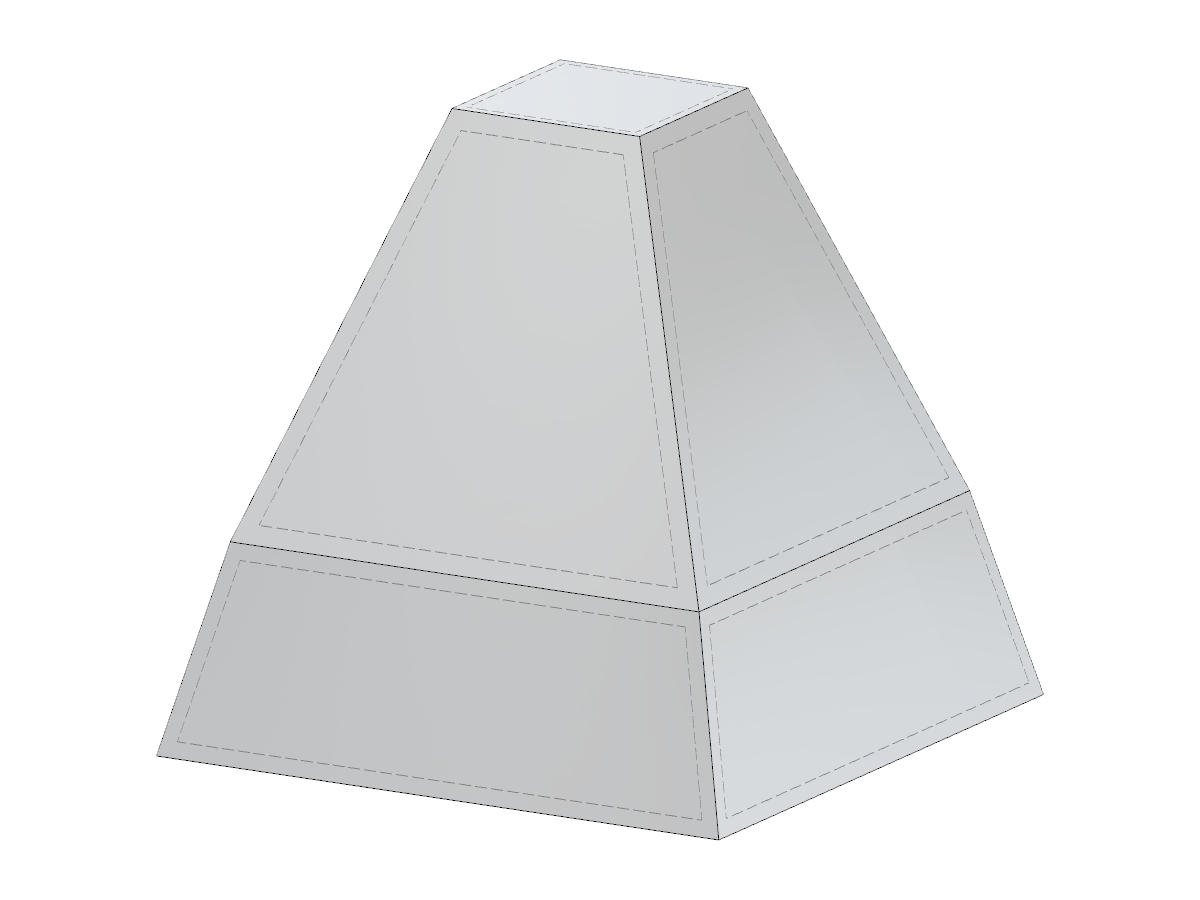

This image depicts a truncated pyramid with a distinct tapered lower section illustrating a structural design.
The image shows a structural model in the form of a truncated pyramid with a tapered bottom part. This structure highlights the geometric design aspects and emphasizes the complexity of combining a wide base narrowing toward the top. The sections clearly demonstrate the architectural intention to balance aesthetics and functionality. This depiction can serve as an aid in the conceptualization phase of similar structural projects.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 20 |
| Number of Members | 0 |
| Number of Surfaces | 10 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 281.667 tons |
| Dimensions (Metric) | 6.000 x 6.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 19.69 x 19.69 feet |
