Pyramid with Rectangular Base Parametrics
Parametric scheme of a pyramid with a rectangular base using JavaScript to adjust based on height or edge length inputs.

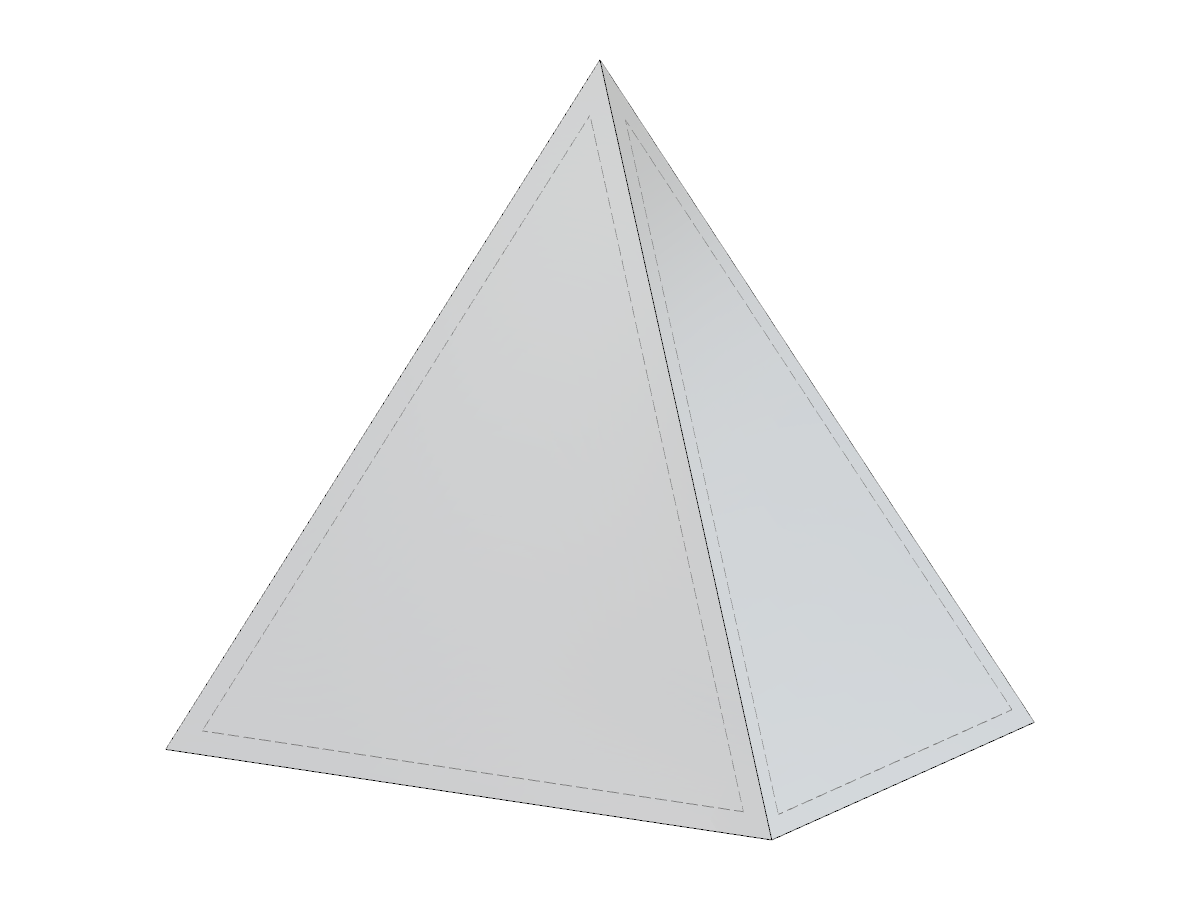

The illustration shows a parametric model of a pyramid featuring a rectangular base. The model is controlled via JavaScript, allowing users to input either height or equal edges to adjust its dimensions. This type of modeling provides flexibility in geometric design and adjustments. The application of parametric design is critical in optimizing structures and materials.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 40.000 tons |
| Dimensions (Metric) | 4.000 x 4.000 x 3.000 m |
| Dimensions (Imperial) | 13.12 x 13.12 x 9.84 feet |
