Truncated Pyramid Structure Design

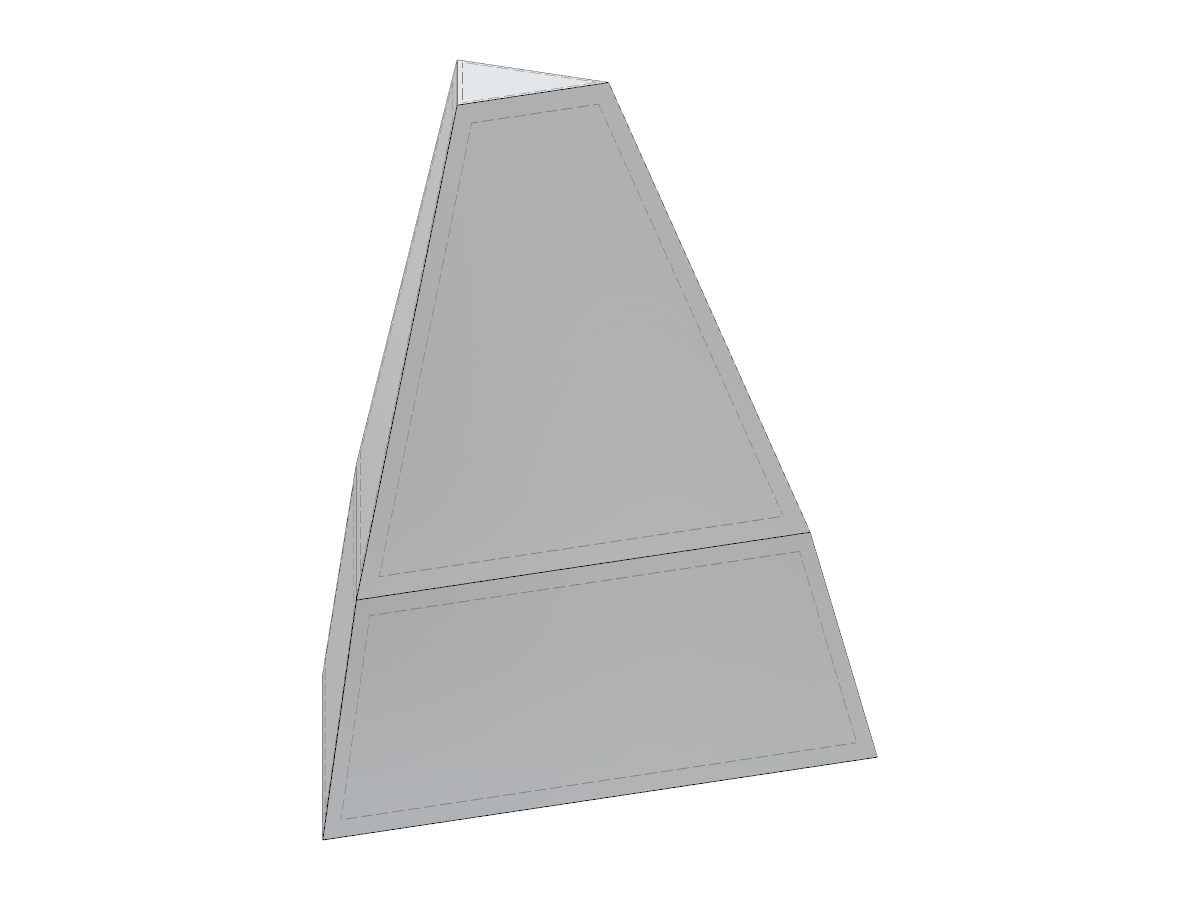

Truncated pyramid with a tapered bottom part; visualized in a structural engineering context.
The image shows the design of a truncated pyramid with a tapered bottom part. The geometric form is accurately rendered to illustrate its structural features. Key details such as the slope of the taper and the truncation dimensions are clearly depicted. The image is a valuable asset for understanding specific geometric configurations in structural design.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 15 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 96.526 tons |
| Dimensions (Metric) | 5.500 x 6.000 x 4.763 m |
| Dimensions (Imperial) | 18.04 x 19.69 x 15.63 feet |
