Parametric Block for Truncated Triangular Pyramid Design
A parametric JavaScript block demonstrating the design of a truncated triangular pyramid with inputs for the height of equal edges.

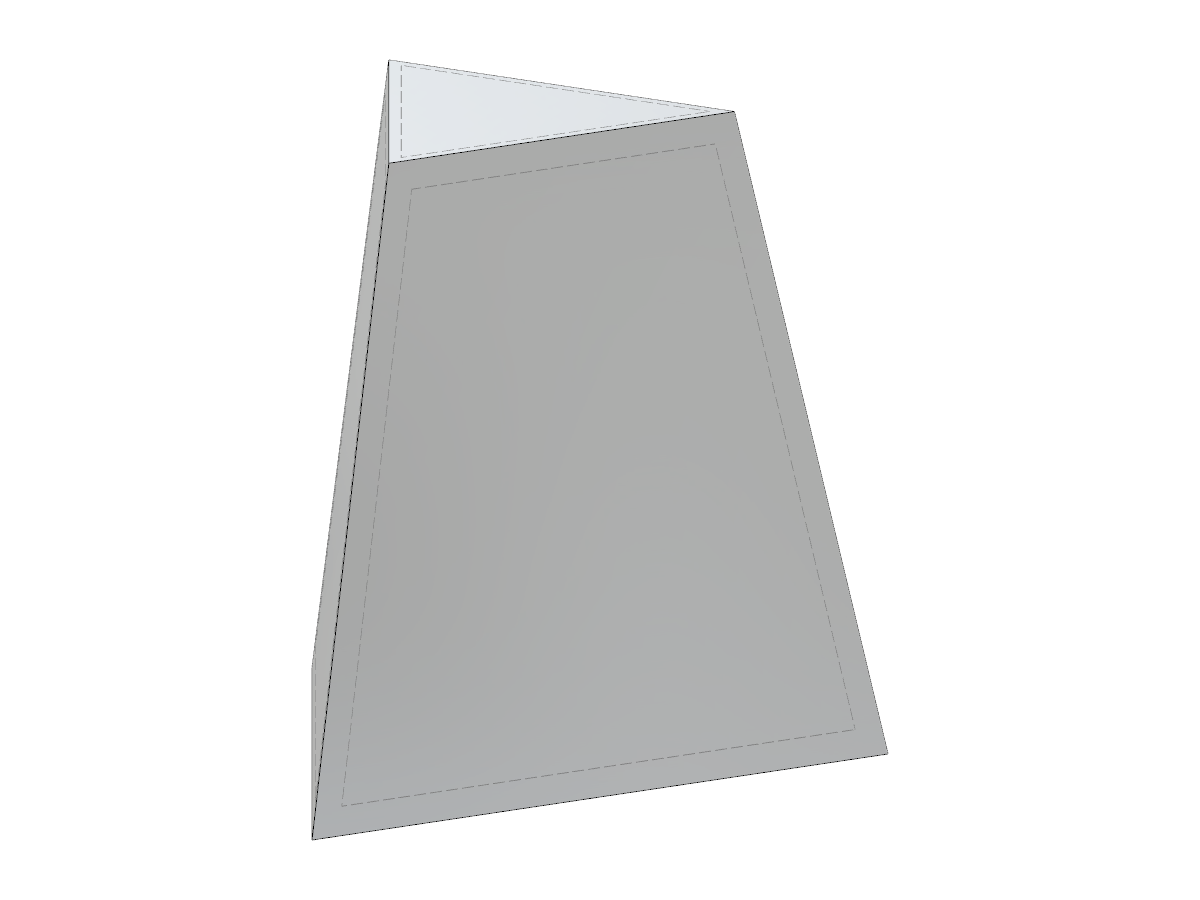

The image displays a parametric JavaScript block focused on modeling a truncated triangular pyramid. This involves inputs related to the height of the pyramid's equal edges, showcasing the geometric flexibility provided by such models. The design framework uses parametric inputs to allow adjustable modeling capabilities, demonstrating the practical applications in structural or architectural contexts.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 9 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 88.407 tons |
| Dimensions (Metric) | 5.000 x 5.000 x 4.330 m |
| Dimensions (Imperial) | 16.4 x 16.4 x 14.21 feet |
