Design and Analysis of Anticlastic Shells with Polygon Supports

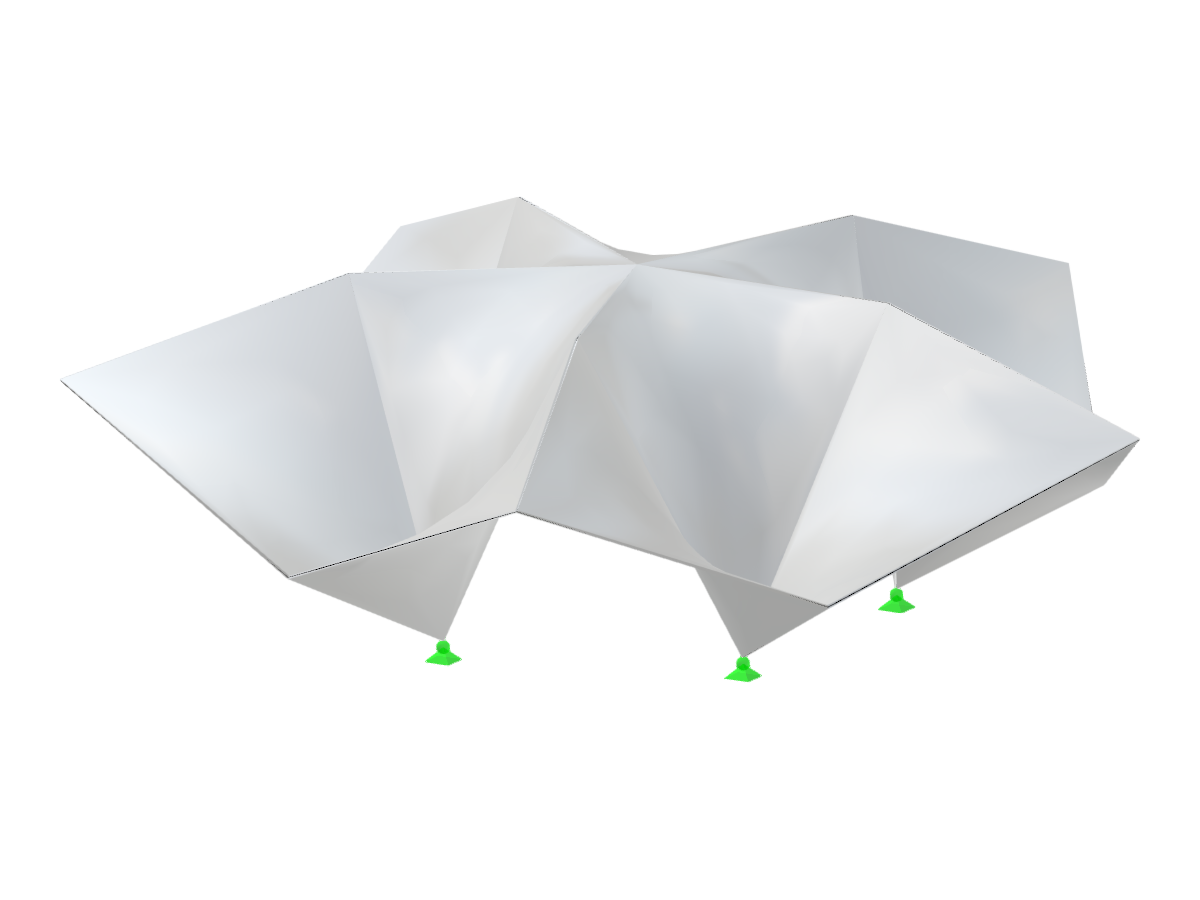

Model of anticlastic shell structure with variable polygon support detailing height and side length configuration.
The image illustrates a model for designing anticlastic shell structures, which are specified by the number of sides on the supporting polygon, its length, and the height. Such models are important in understanding the geometric configurations needed for effective structural design of shells with complex shapes and supports. Anticlastic shells feature double curvature, making them efficient in distributed load management.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 21 |
| Number of Lines | 35 |
| Number of Members | 0 |
| Number of Surfaces | 15 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 276.486 tons |
| Dimensions (Metric) | 30.777 x 10.000 x 32.361 m |
| Dimensions (Imperial) | 100.97 x 32.81 x 106.17 feet |
