Hypar Surface Structural Geometry Over Rectangular Plan

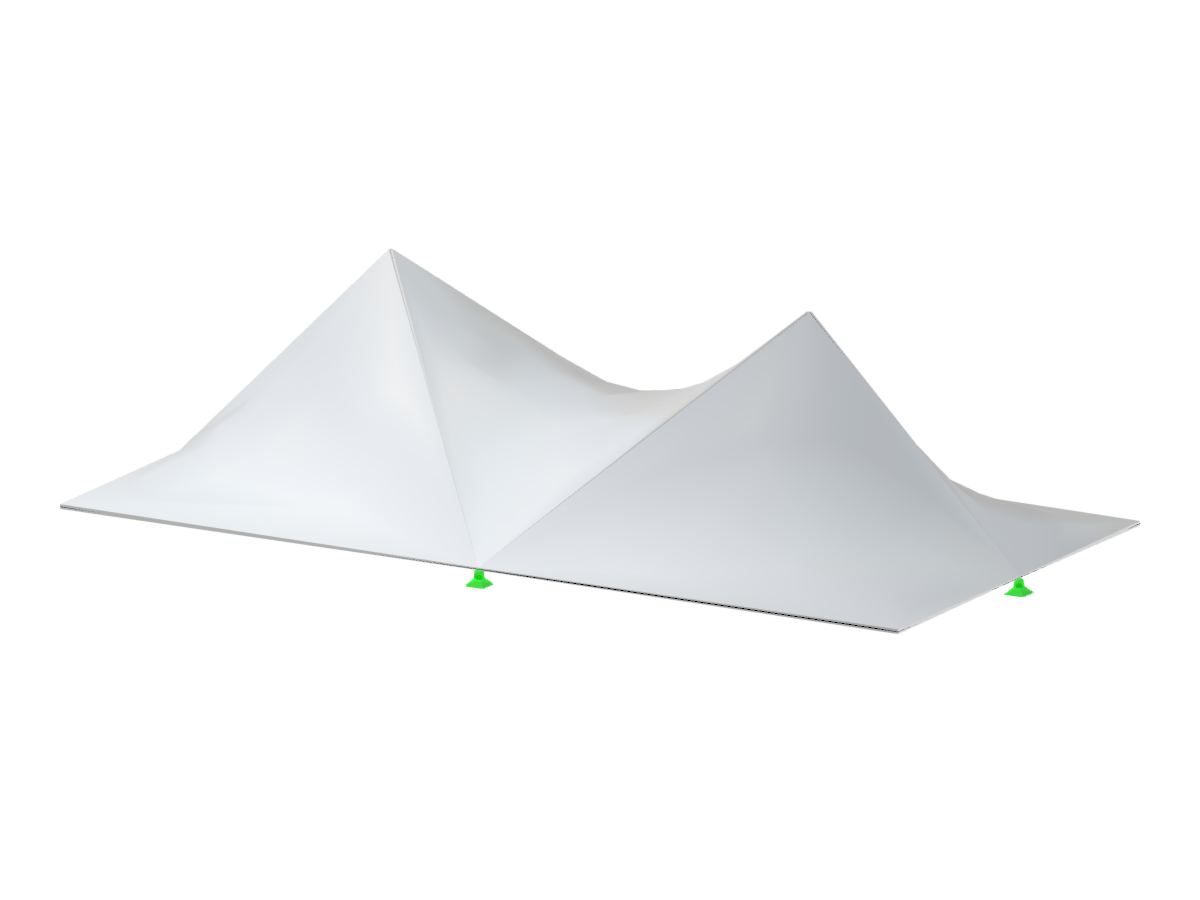

Anticlastic shell structures featuring five hypar surfaces are shown in a rectangular plan design, illustrating space-defining systems.
The design features systems of space definition using straight-edged hypar surfaces, forming an anticlastic shell structure. This setup consists of five hypar surfaces arranged over a rectangular plan, highlighting their application in architectural geometry.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 10 |
| Number of Lines | 14 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 63.704 tons |
| Dimensions (Metric) | 20.000 x 5.000 x 10.000 m |
| Dimensions (Imperial) | 65.62 x 16.4 x 32.81 feet |
