Anticlastic Hypar Shell Structures Over Rectangular Base

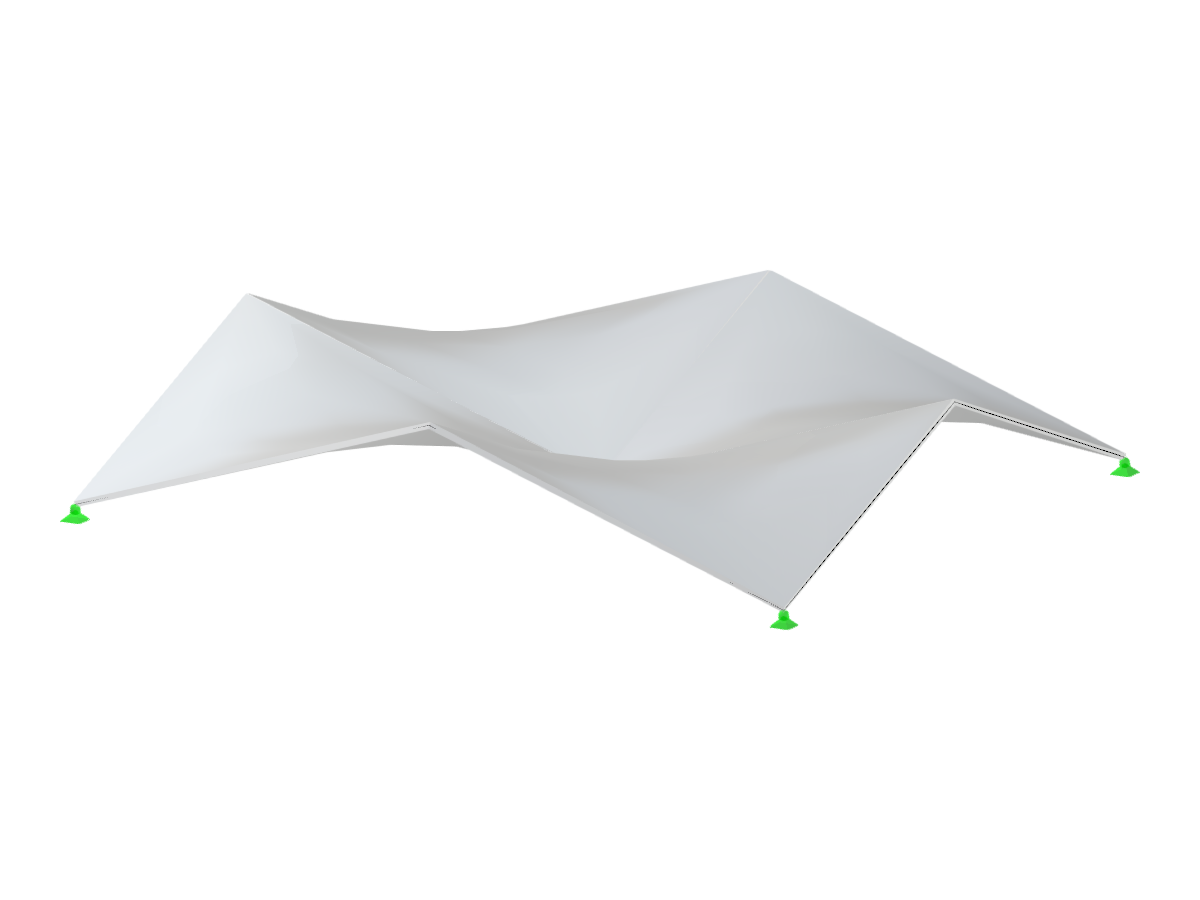

Four hyperbolic paraboloid surfaces form an anticlastic shell structure with slanted boundaries and folds over a rectangular plan.
The structure features four hyperbolic paraboloid (hypar) surfaces forming anticlastic shells. These surfaces are positioned over a rectangular plan, with all their boundaries and folds angled. This configuration highlights the geometric complexity and aesthetic of using hypar surfaces in architectural shells.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.315 tons |
| Dimensions (Metric) | 12.000 x 2.000 x 10.000 m |
| Dimensions (Imperial) | 39.37 x 6.56 x 32.81 feet |
