Anticlastic Hypar Shells Over Rectangular Plan

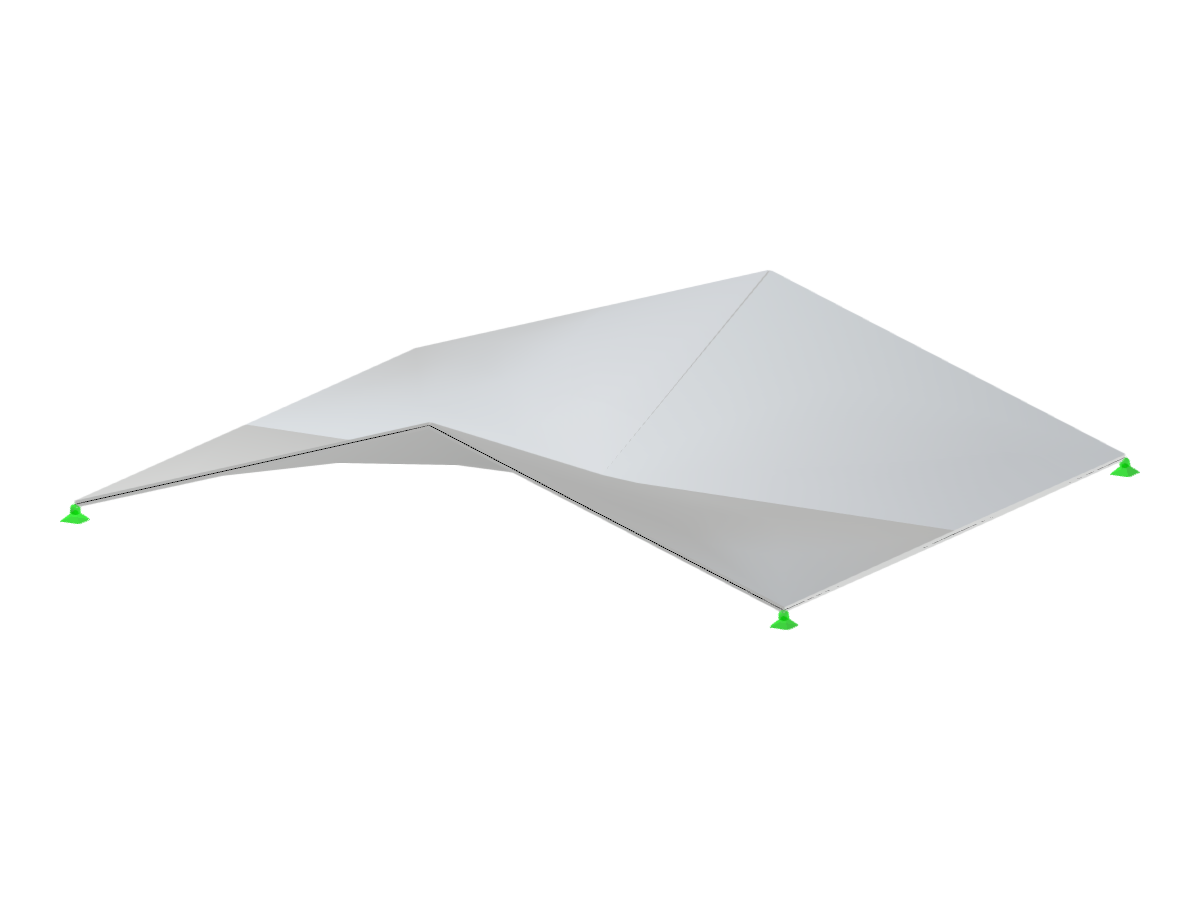

Anticlastic shells with four "hypar" surfaces spanning a rectangular plan, featuring two boundaries and folds on one level.
The image showcases anticlastic shells comprising four hyperbolic paraboloid surfaces arranged over a rectangular base. These surfaces are characterized by having two boundaries and folds at one level. The geometry illustrates the efficiency and aesthetic appeal of using "hypar" shapes in architectural structures. Their unique curvature enables the creation of lightweight and strong forms suitable for modern architectural applications.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.315 tons |
| Dimensions (Metric) | 12.000 x 2.000 x 10.000 m |
| Dimensions (Imperial) | 39.37 x 6.56 x 32.81 feet |
