Anticlastic Shells with Four Hypar Surfaces

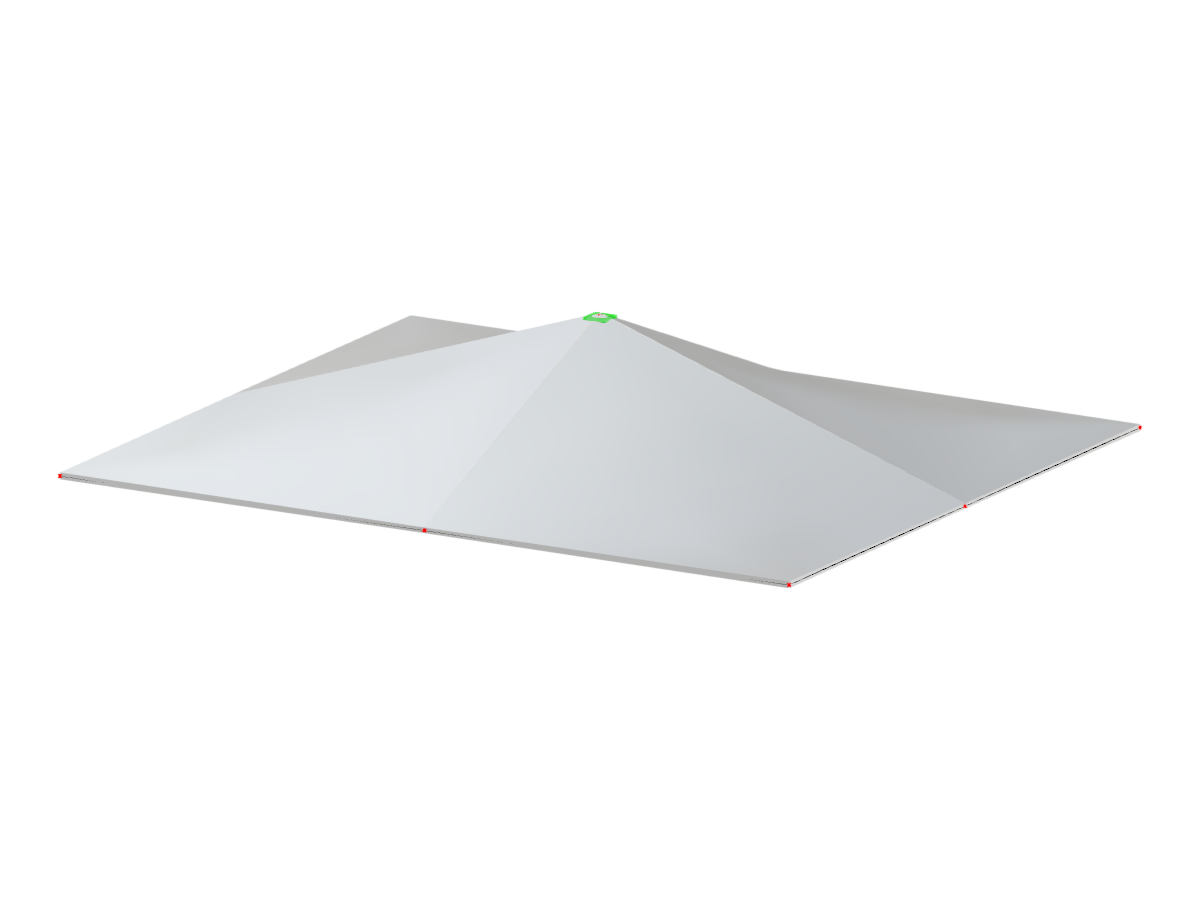

View of anticlastic shells featuring four hyperbolic paraboloid surfaces, all edges aligned on one level over a rectangular plan, showcasing complex architectural geometry.
Anticlastic shells, known as hyperbolic paraboloids, are depicted with four distinct surfaces over a rectangular plan. Each edge lies on the same horizontal plane, demonstrating uniformity in elevation. The design showcases the complex yet elegant nature of hyperbolic geometries in architectural engineering.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.315 tons |
| Dimensions (Metric) | 12.000 x 2.000 x 10.000 m |
| Dimensions (Imperial) | 39.37 x 6.56 x 32.81 feet |
