Barrel Vault Structure with Diaphragm Geometry

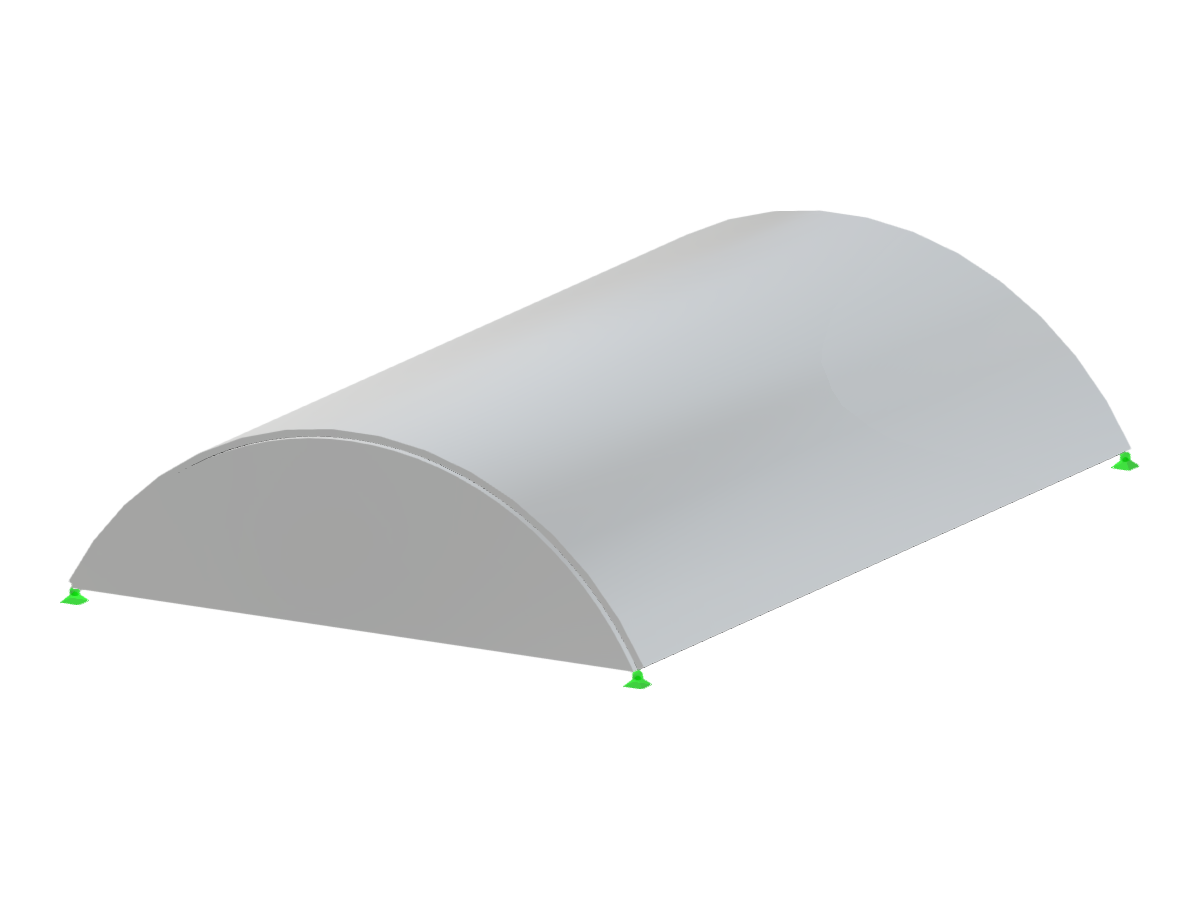

Detailed view of a semi-cylindrical barrel vault structure with diaphragm geometry defined by height and radius.
The image depicts a semi-cylindrical barrel vault characterized by a diaphragm geometry. The vault's geometry is defined through its height and radius, illustrating a smooth, semi-circular arch. The structural design emphasizes the integration of diaphragm elements which provide stability and support. This configuration is frequently applied in architectural and structural engineering to achieve efficient load distribution.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 9.059 tons |
| Dimensions (Metric) | 4.000 x 1.200 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 3.94 x 19.69 feet |
