Barrel Vault with Stiffener Design

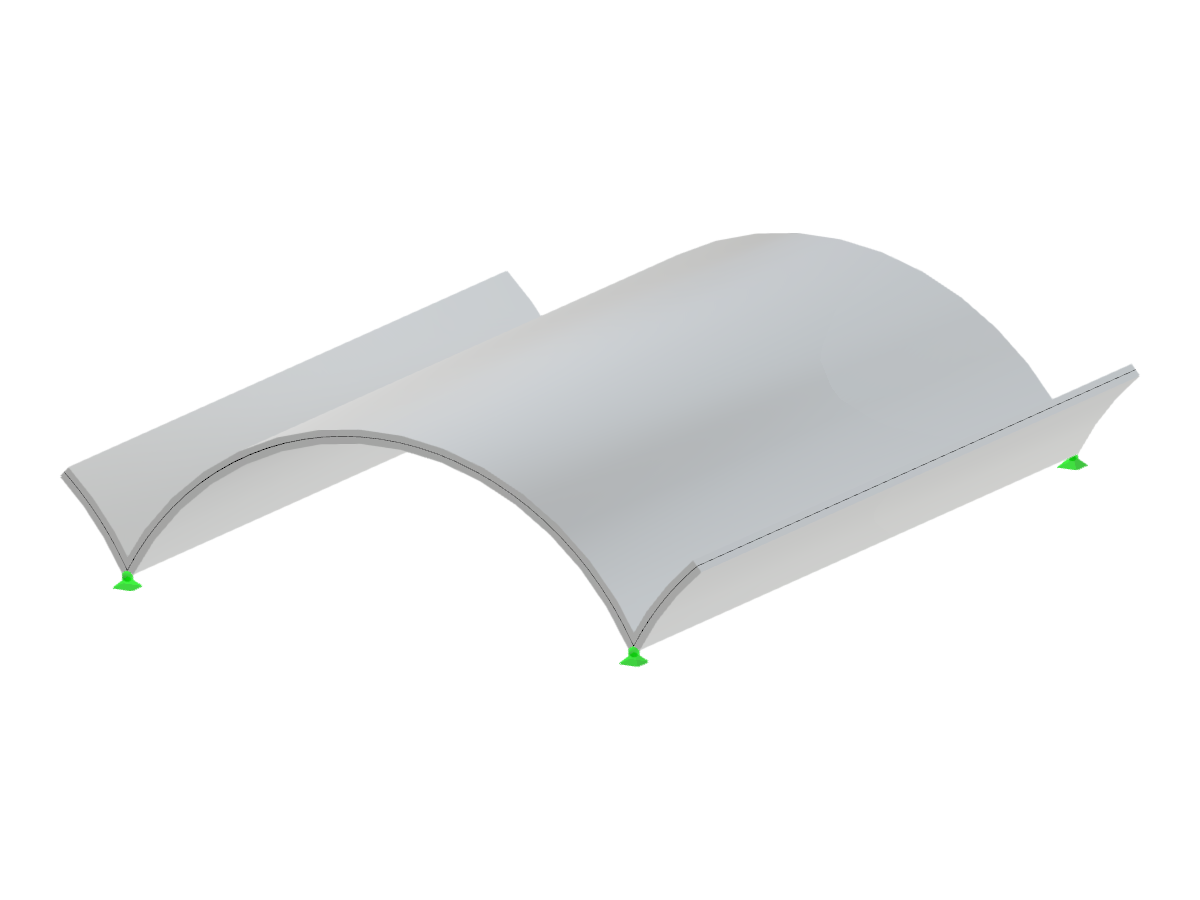

A semi-cylindrical barrel vault structure with radial stiffeners showcasing structural design and engineering techniques.
The image depicts a semi-cylindrical barrel vault reinforced with radial stiffeners. This type of vault structure displays advanced structural engineering principles, providing strength and stability. Radial stiffeners are strategically positioned to enhance the load-bearing capacity of the vault, ensuring longevity and durability.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 9.781 tons |
| Dimensions (Metric) | 5.000 x 1.200 x 6.000 m |
| Dimensions (Imperial) | 16.4 x 3.94 x 19.69 feet |
