Barrel Vault with Vertical Stiffener Geometry

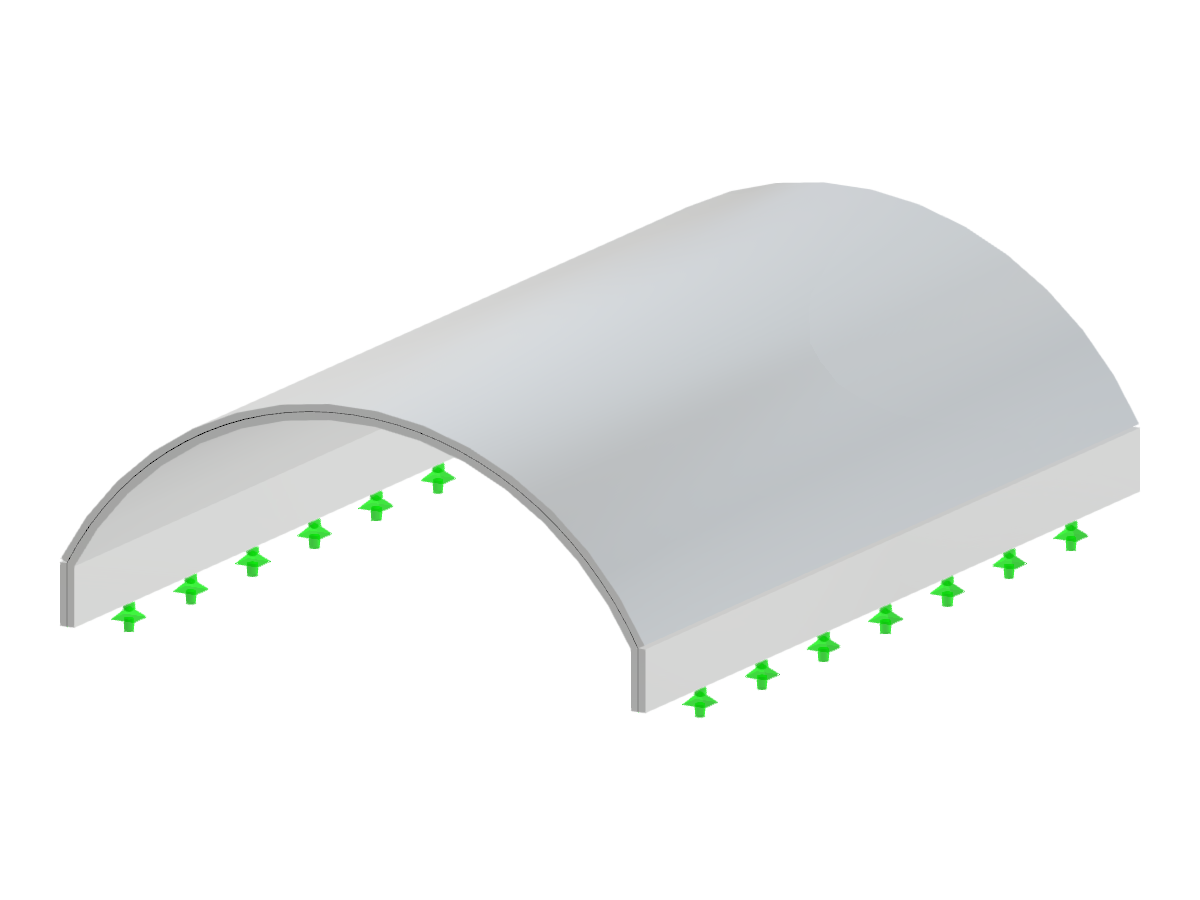

Barrel vault with a semi-cylindrical shape featuring vertical stiffeners, highlighted by its geometry defined by height and radius.
The image depicts a barrel vault, characterized by its semi-cylindrical form and supported by vertical stiffeners. Its structural geometry is specifically delineated based on height and radius dimensions, likely contributing to its stability and strength in practical applications.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.550 tons |
| Dimensions (Metric) | 4,000 x 1,600 x 6,000 m |
| Dimensions (Imperial) | 13.12 x 5.25 x 19.69 feet |
