Steel Silo with Circular Plan and Spherical Cap Roof

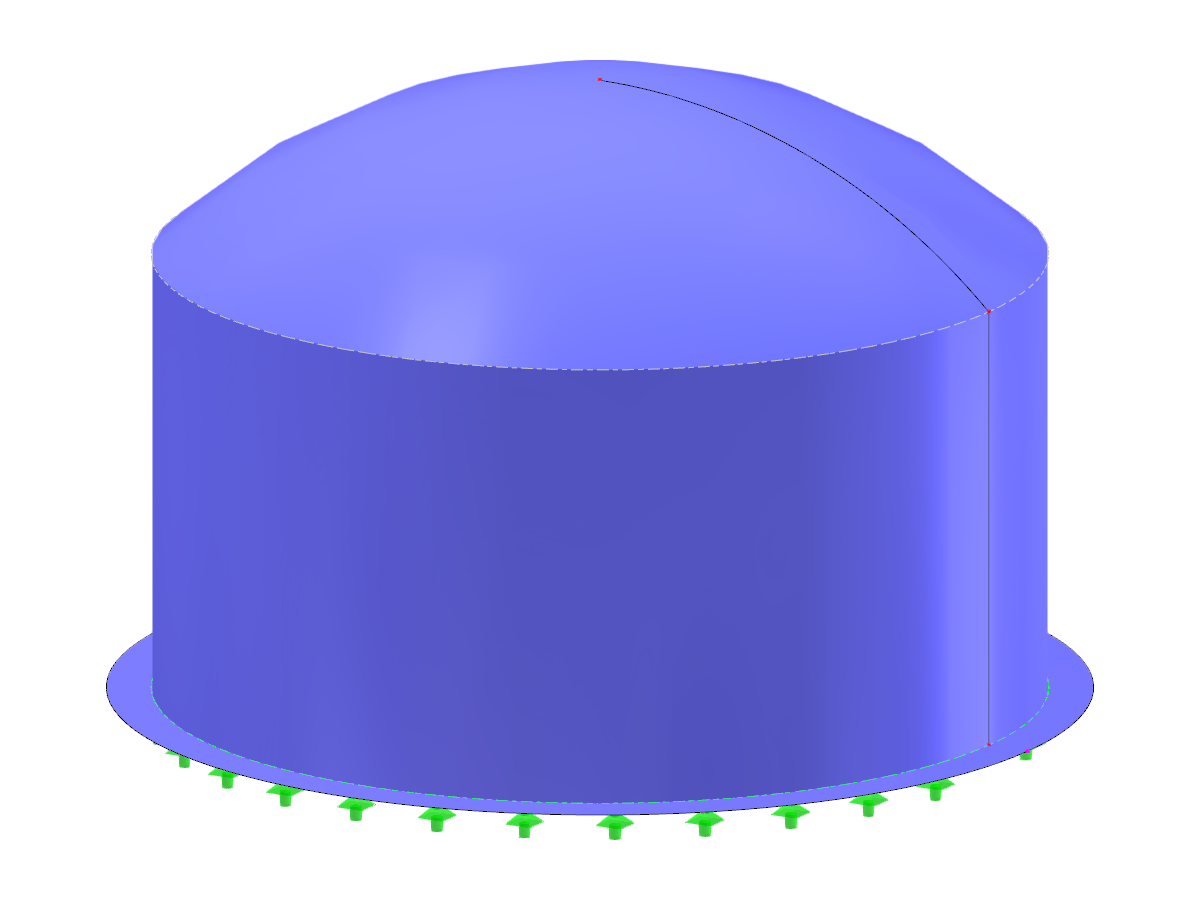

View of a steel silo with a circular plan and a spherical cap roof, indicating typical industrial storage structure characteristics.
The image showcases a steel silo featuring a circular base and a spherical cap roof, typical for industrial storage solutions. The design highlights structural efficiency and storage capacity in industrial applications.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 73.985 tons |
| Dimensions (Metric) | 11.000 x 7.000 x 11.000 m |
| Dimensions (Imperial) | 36.09 x 22.97 x 36.09 feet |
