Dialog Box “Edit Member”, Tab “Design Supports and Deflection”

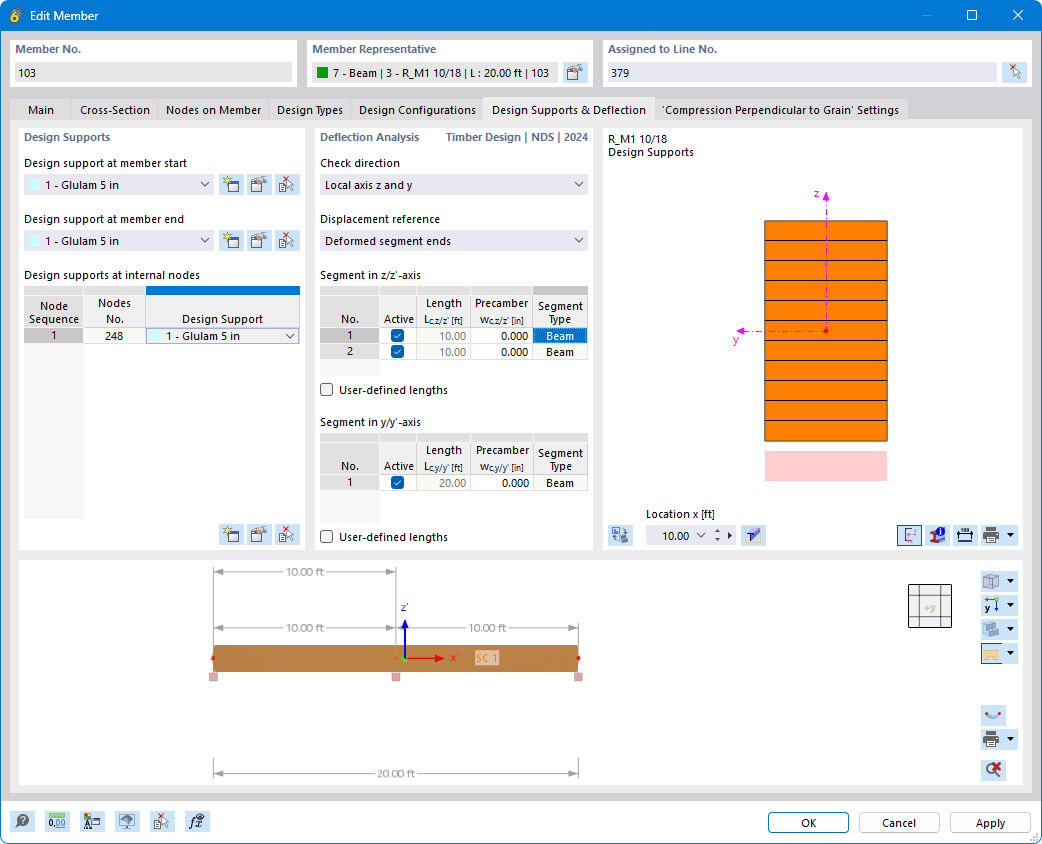

The “Edit Member” dialog box shows the “Design Supports and Deflection” tab. Users can set specific support conditions and deflection limits for members. Various parameters and drop-down lists are available to specify the structural design criteria. User-friendly input boxes make it easy to precisely adjust the design settings. This is crucial for the correct performance evaluation of supporting elements.
